Elin Kitchen Cabinet Light · SP001B Lens
Aluminum undercabinet LED spot with lens optic (SP001B) for directional kitchen cabinet accent and task lighting. Same D69x15mm recess body as Era, with a focused 36 degree beam.
SP001B concentrates light for directional shelf and cabinet accents.
36 degree optics suit display niches and localized task zones.
Same size envelope as Era SP001A for consistent cutouts.
Low-voltage aluminum spot for European cabinet lighting packages.
| SKU | SP001B-24A | Finish | Brushed Aluminum |
|---|---|---|---|
| Size | D69x15mm | Material | Aluminum |
| Power | 2.5W | Voltage | 24Vdc |
| CCT Options | 3000K/4000K/6500K | CRI | Ra>90 |
| Lumen Output | 250 lm | Beam Angle | 36 degree |
| IP Rating | IP20 | Optic | Lens (SP001B) |
| Dimming | Non-dimmable | Mounting | Recess Mounted |
| Installation | Under cabinet / display cabinet / wardrobe / shelf lighting | Warranty | 3 years |
| Driver | External driver required | MOQ | 50 |
CE/UKCA/RoHS compliant for kitchen cabinet lighting applications.

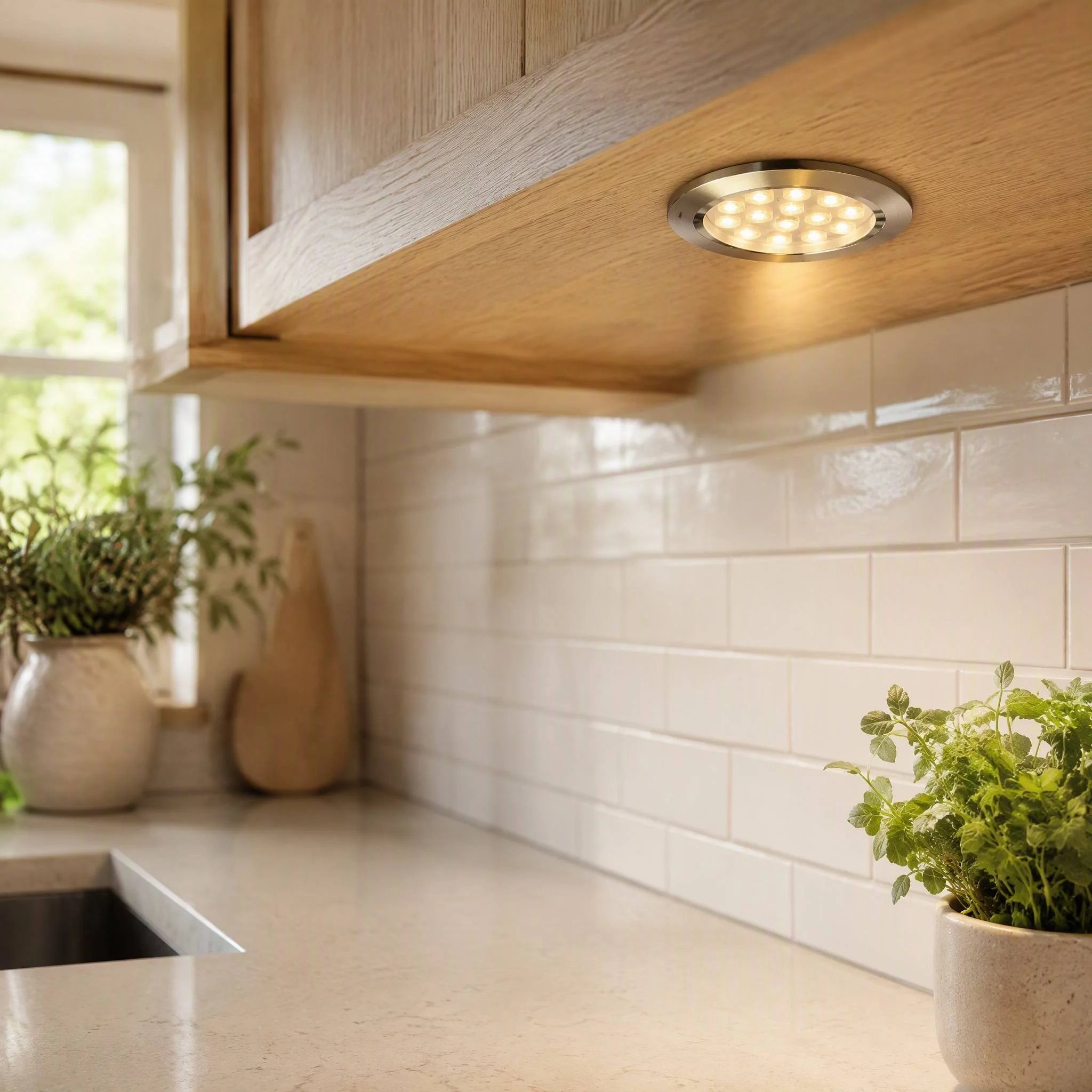

Elin Undercabinet Aluminum LED Spot (SP001B lens) is suitable for kitchen cabinets, display niches and wardrobe interiors needing focused directional light.
Room size: Kitchen / display cabinet zones | Lighting: Accent / localized task lighting
The 36 degree lens optic directs light onto shelves and work zones while keeping the same recess footprint as Era SP001A for project standardization.
Recess mounted under cabinet panels.

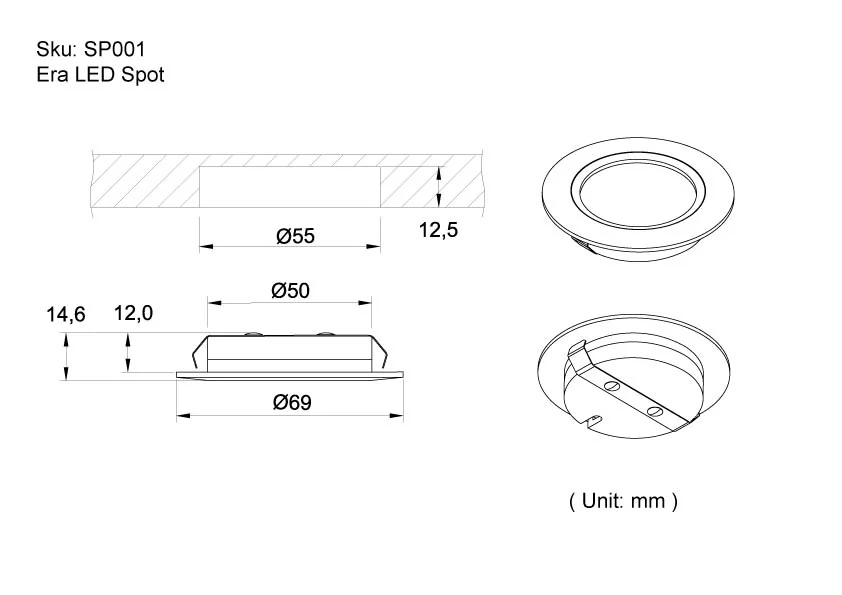

The standard size shown on this page is D69x15mm.
This product is specified for 12Vdc / 24Vdc.
Yes. It is designed for undercabinet kitchen, wardrobe and display lighting, with IP44 protection for humid kitchen zones when installed correctly.
Yes. Finish, packaging, MOQ and project supply details can be confirmed during quotation.
The standard warranty is 3 years unless a project agreement states otherwise.
