LED Driver · XY24LI

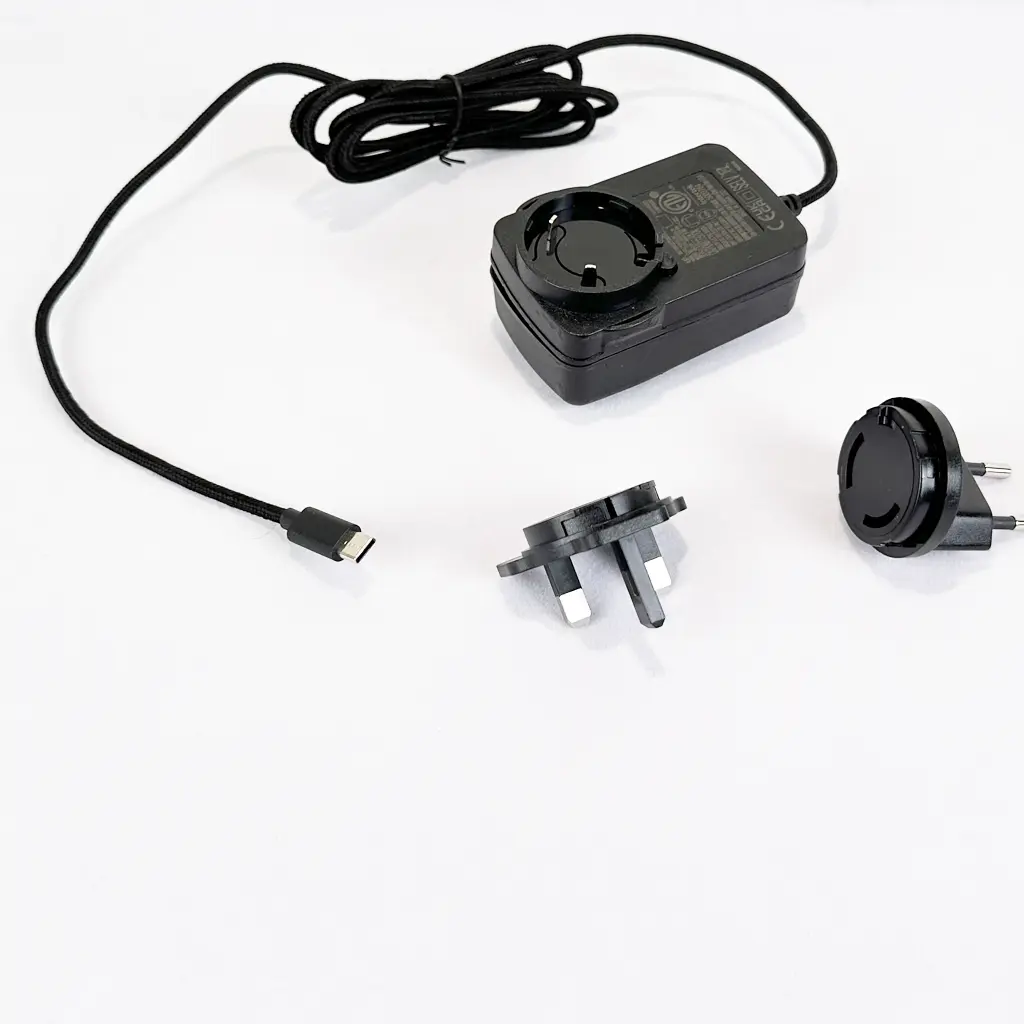

One driver body supports EU, UK, US and SAA plug inserts for multi-market projects.
Datasheet specifies 5Vdc output at 15W total wattage for compatible low-voltage LED loads.

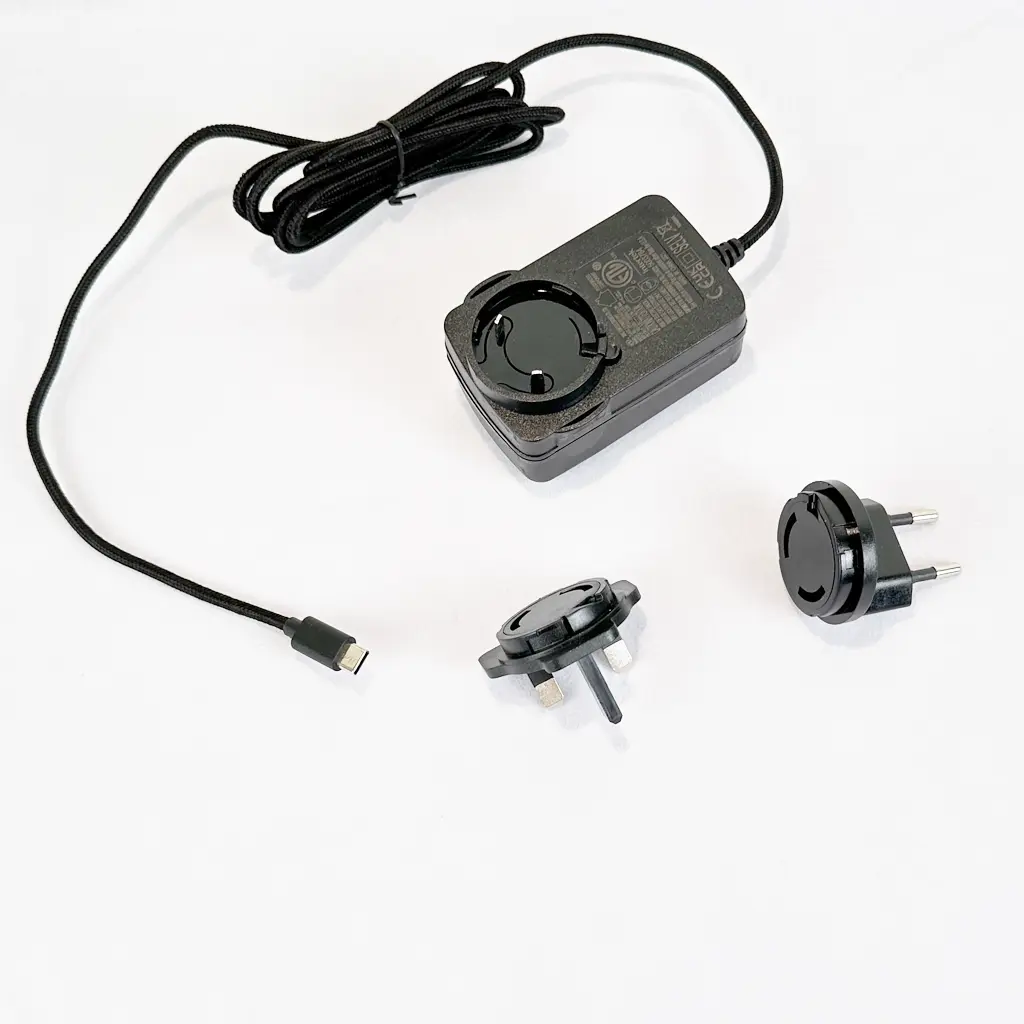

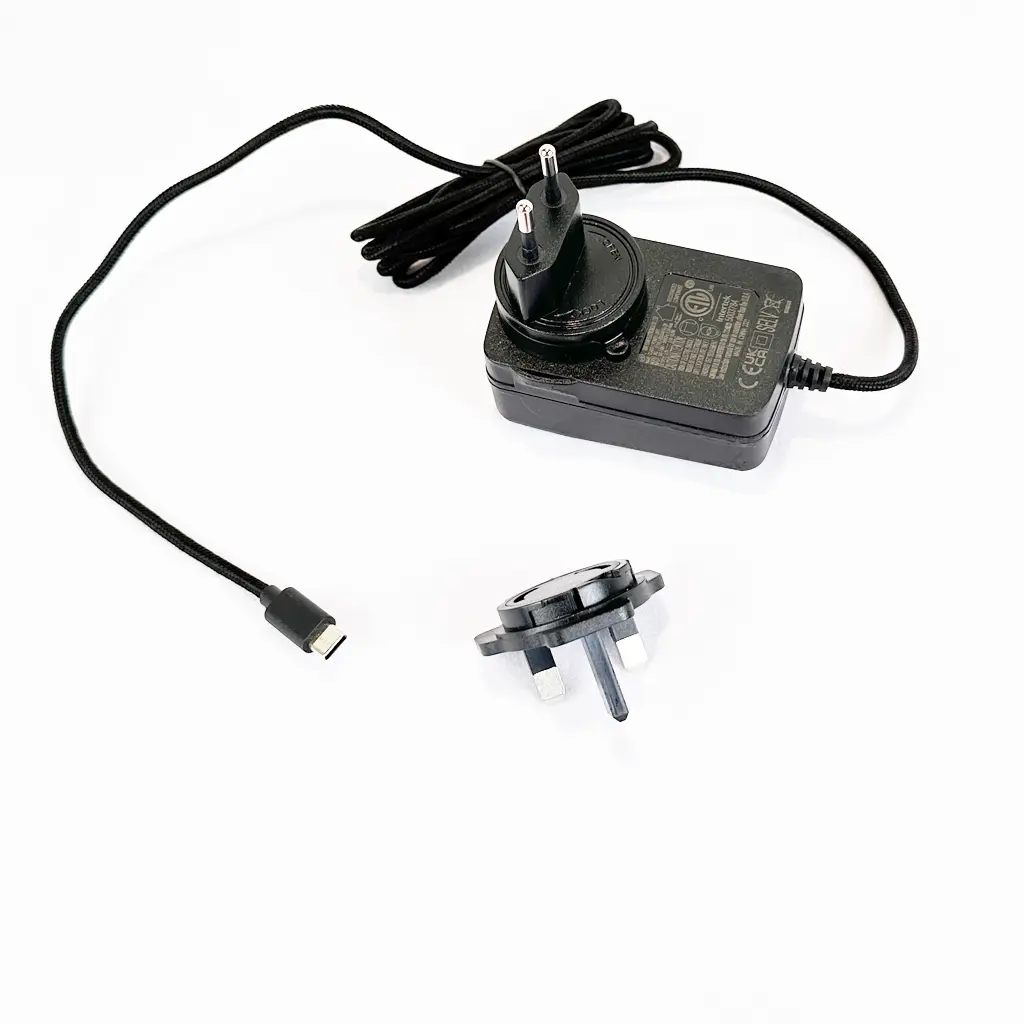

Type-C wire connector supports compact furniture and cabinet LED setups.
IP20 Class II with short/open/overload/over-temperature protection listed on the datasheet.
| SKU | XY24LI | Model | XY24LI-050300VQ-ZW |
|---|---|---|---|
| Rated Power | 15W | Driver Type | Constant Voltage |
| Input Voltage | 100-240Vac | Frequency | 50/60Hz |
| Output Voltage | 5Vdc | Output Current | 3.0A |
| IP Rating | IP20 | Safety Class | Class II |
| Plug Types | EU / UK / US / SAA (interchangeable) | Output Connector | Type-C wire connector |
| Dimensions (L×W×H) | 50 × 80 × 60 mm (US plug) | Dimming | No built-in dimming |
| Protection | Short circuit, open circuit, overload, over-temperature | Certifications | CE / UKCA / RoHS / REACH |
| Standards (datasheet) | IEC 61347-1 and IEC 62368-1:2018; datasheet also lists CB, ETL, SAA, CCC (verify certificates) | ||
Datasheet marks CE, UKCA, RoHS and REACH. Safety Class II, IP20. Product highlights also reference IEC 61347-1 and IEC 62368-1:2018, with CB, ETL, SAA and CCC listed in marketing bullets — certificate files should be verified before project claims.

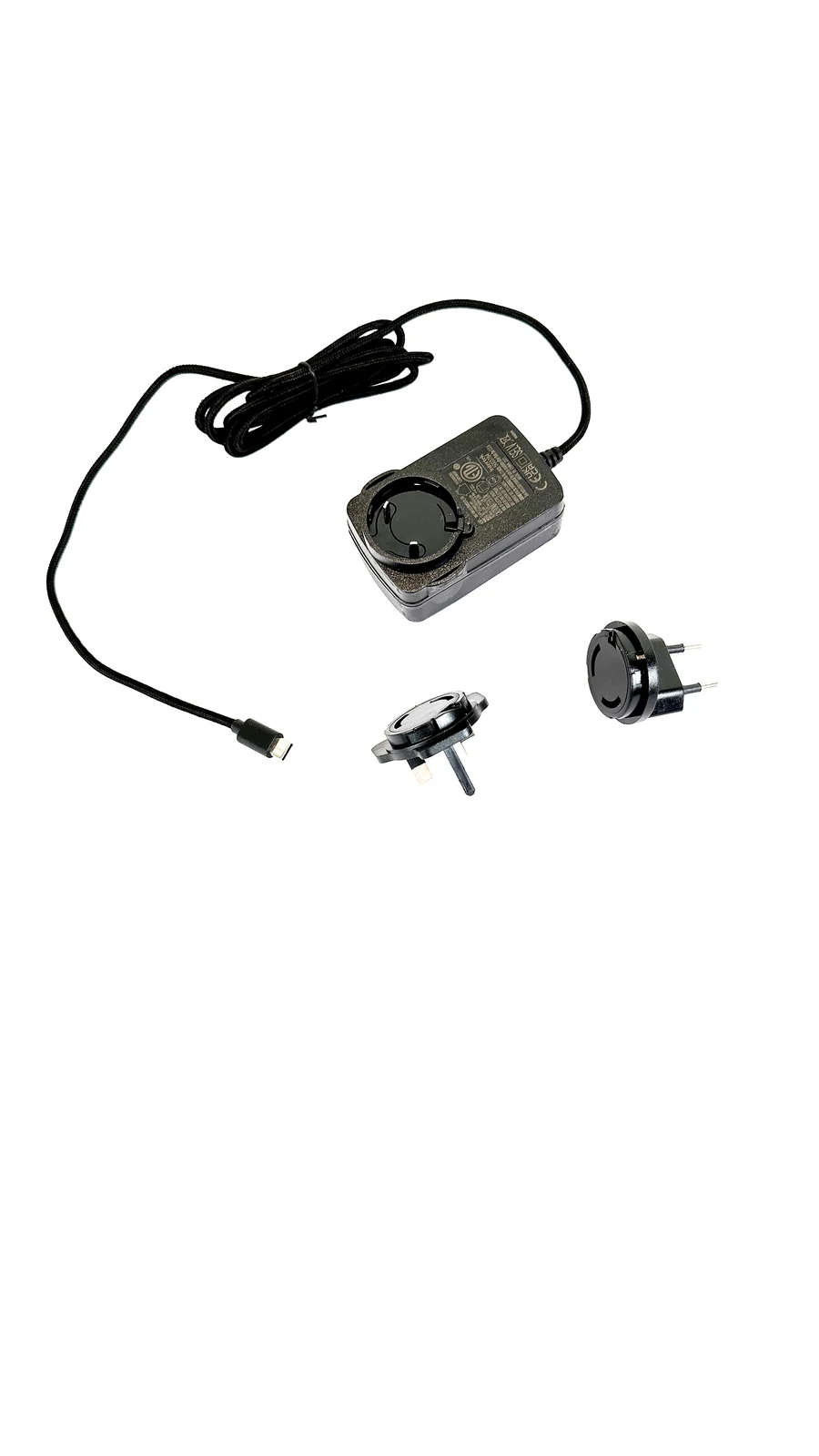

Compact 15W interchangeable-plug LED driver for cabinet lighting, wardrobe lighting, LED strip power, furniture lighting, retail display lighting and other low-voltage indoor systems that accept 5Vdc Type-C supply.
Typical use: multi-market cabinet / furniture LED kits | Output: 5Vdc
Confirm total LED load stays within 15W and that luminaires accept 5Vdc before installation. Follow local electrical rules.
3D CAD files are available for approved distributors and project partners.
Request 3D CAD AccessThe product datasheet specifies 5Vdc output (15W total). This is not a 12V/24V furniture driver family.

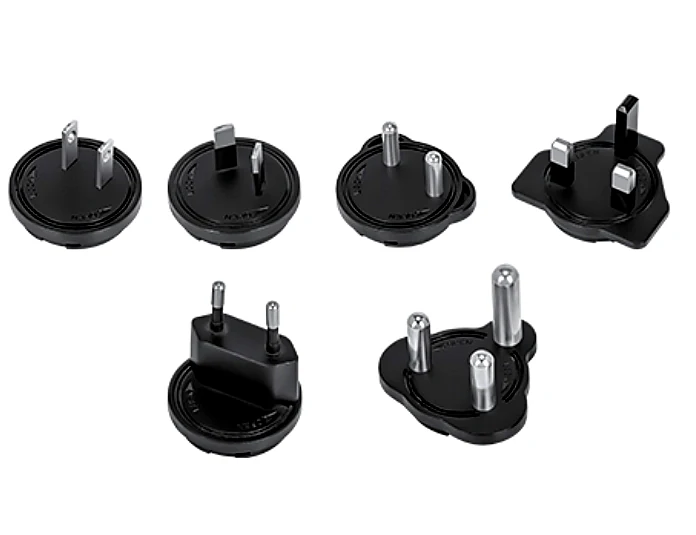

Datasheet lists interchangeable One-for-All plugs: EU, UK, US and SAA. Plug inserts attach to the same driver body.
Yes. It is intended for compact LED driver / charger use in cabinet, wardrobe, furniture and display lighting when the LED load accepts 5Vdc and stays within 15W.
Datasheet states built-in dimming: No.
Datasheet checkbox marks CE, UKCA, RoHS and REACH, Class II, IP20. Highlights also mention IEC 61347-1 / IEC 62368-1 and CB, ETL, SAA, CCC — request certificate packs for project documentation.
