KITCHEN PENDANT LIGHT · PA002 SERIES

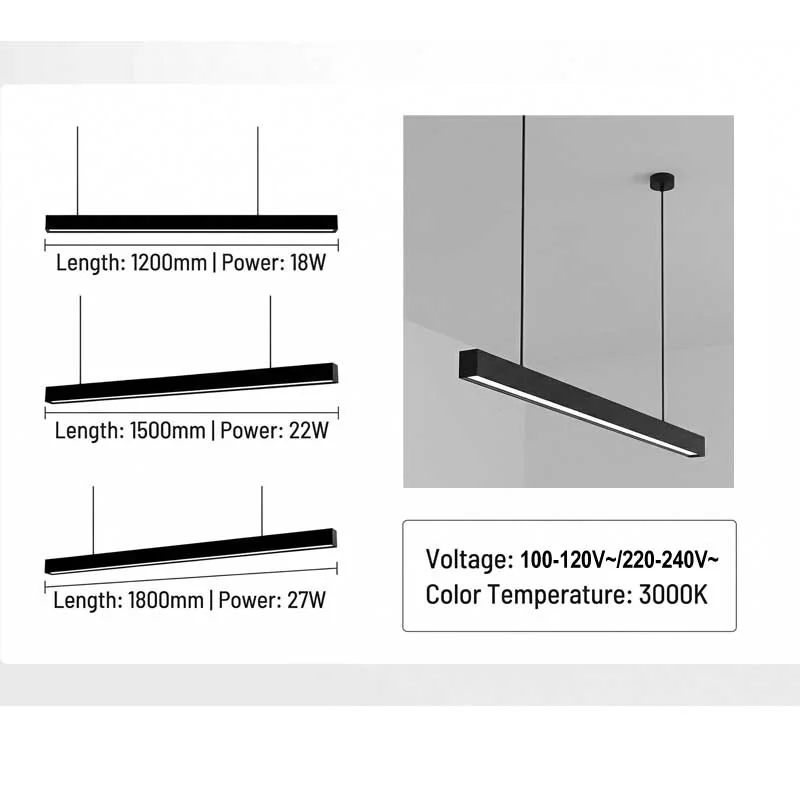

The Slender linear pendant light series offers three nominal lengths—120, 150 and 180 cm—for kitchen islands, dining areas, restaurants and cafés. The supplied range illustration lists 18 W, 22 W and 27 W respectively; the PA002-120 datasheet specifies 1800 lm and CRI above 90 for the 120 cm model.

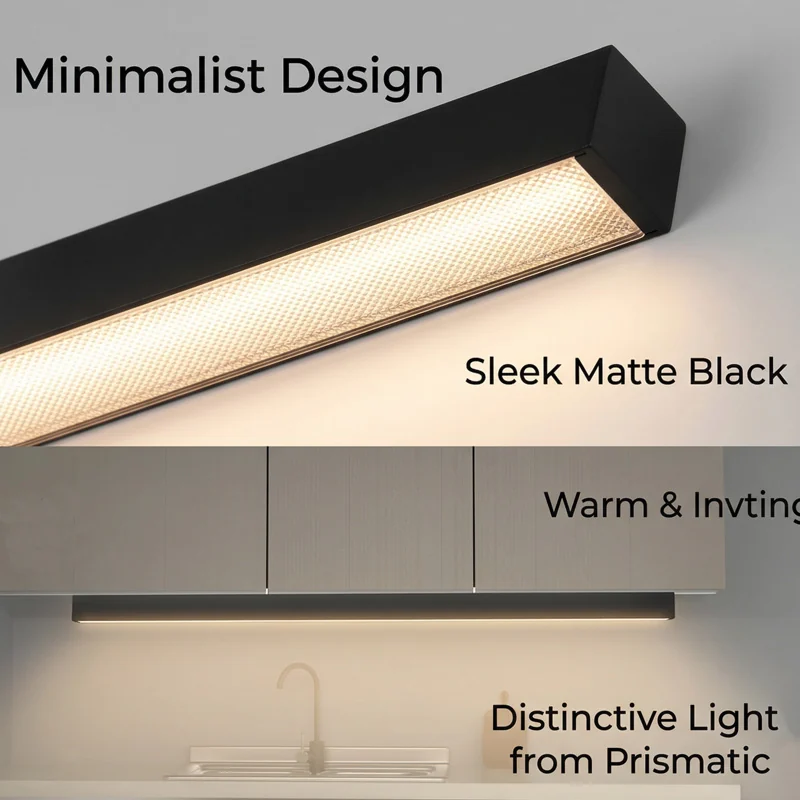

A narrow matte black or sand black body suits contemporary interiors.
The range illustration lists 18 W, 22 W and 27 W. The 120 cm datasheet specifies 1800 lm and CRI above 90.
Set the hanging height for your kitchen island or project layout.
Specify CCT, cable length and compatible dimming configuration when requesting a quote.
| Model | Nominal length | Drawing body length | Power (range image) |
|---|---|---|---|
| PA002-120 | 120 cm | 1205 mm | 18 W |
| PA002-150 | 150 cm | 1505 mm | 22 W |
| PA002-180 | 180 cm | 1805 mm | 27 W |
The PA002-120 datasheet states 1200 × 35 × 65 mm, while the supplied series drawing shows a 1205 mm lamp body. Confirm the measurement convention or revision before using dimensions for installation clearance. The same drawing shows a 35 × 65 mm profile, a 600 mm suspension-point spacing, and a 50 × 24 mm canopy detail; verify these dimensions for the ordered version.
| 120 cm output | 1800 lm (PA002-120 datasheet) | 120 cm CRI | >90 (PA002-120 datasheet) |
|---|---|---|---|
| 120 cm input | 220–240 V AC (datasheet) | 120 cm CCT | 3000 / 4000 / 6500 K (datasheet) |
| 120 cm material | Aluminum | 120 cm finish | Matte black / sand black |
| 120 cm IP rating | IP20 | 120 cm listed compliance | CE, UKCA, RoHS |
| Suspension | Adjustable cable height | Dimming | Optional; confirm driver and protocol |
| 120 cm inner box | 127 × 10 × 8.5 cm; net/gross 1.5/1.8 kg | 120 cm outer carton | 127 × 21 × 27.5 cm; net/gross 10.8/12 kg; 6 pieces |
Electrical input, lumen output, CRI, CCT, finish, IP rating, compliance and packing data for PA002-150 and PA002-180 need their own confirmed datasheets. A supplied size image mentions 100–120 V / 220–240 V; the PA002-120 datasheet specifies 220–240 V. Confirm any 100–120 V configuration separately.
The supplied PA002-120 V0 datasheet lists CE, UKCA, RoHS and IP20 for the 120 cm model. Request model-specific documentation for PA002-150 and PA002-180, as well as current supporting documents for the ordered driver and destination market. Confirm the IP rating of each model before selecting its installation location.

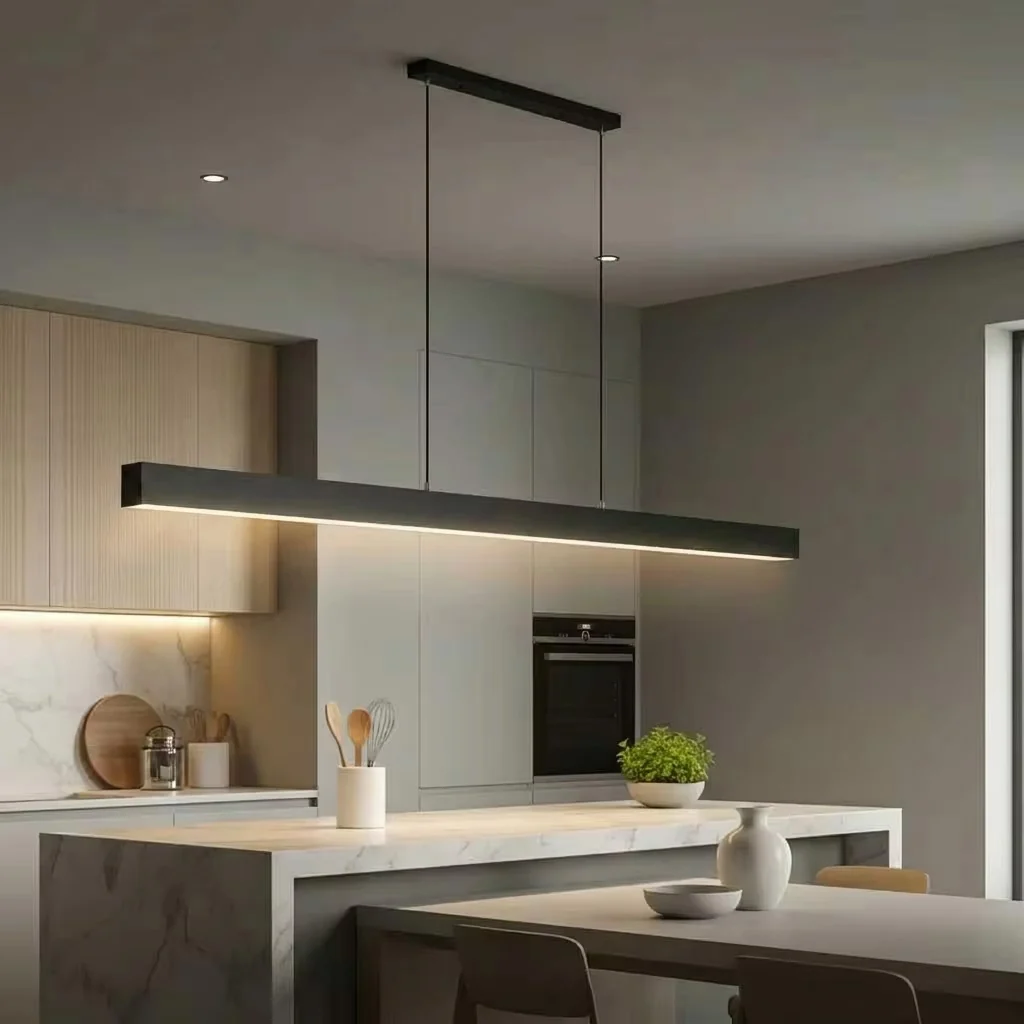

The slender linear pendant light adds focused illumination over kitchen islands, dining tables and counters. Its understated aluminum housing fits contemporary restaurants and cafés as well as residential kitchens.
Choose 120, 150 or 180 cm nominal length and set the suspension height for the installation. Confirm the color-temperature choices for the selected SKU; 3000 K, 4000 K and 6500 K are specified in the 120 cm datasheet. For project lighting design, share the mounting height, work surface dimensions, voltage and required dimming method.
For a quote, specify PA002-120, PA002-150 or PA002-180, plus finish, CCT, cable length, quantity and destination market. Request the model-specific datasheet for the 150 and 180 cm versions.
The drawing covers all three listed model lengths. Datasheets are available for PA002-120, PA002-150 and PA002-180; confirm the final revision before using specifications for procurement or installation.
Choose 120, 150 or 180 cm nominal length based on the island and lighting layout. Verify suspension-point spacing and installation clearances using the approved drawing.
The PA002-120 datasheet lists 1200 × 35 × 65 mm, 18 W, 1800 lm, CRI above 90 and 220–240 V AC. The series drawing gives a 1205 mm lamp body; confirm the dimensional convention.
The cable height is adjustable. Dimming is offered as an option; confirm the driver and control protocol for the ordered configuration.
Yes. The series drawing identifies PA002-150 and PA002-180, showing lamp-body lengths of 1505 and 1805 mm. The supplied range illustration lists 22 W and 27 W respectively. Request model-specific electrical datasheets before ordering.
The PA002-120 datasheet rates that model IP20. Confirm the 150 and 180 cm model ratings separately; do not assume that the series is moisture-rated.
