AuraEdge Kitchen Cabinet Light · LA3716
Solid aluminum handle-free LED profile for under-cabinet cupboard edges. PC diffuser delivers directional, dot-free linear light for modern kitchen cabinet and furniture projects.
Combines a recessed finger-pull edge with continuous undercabinet task lighting.

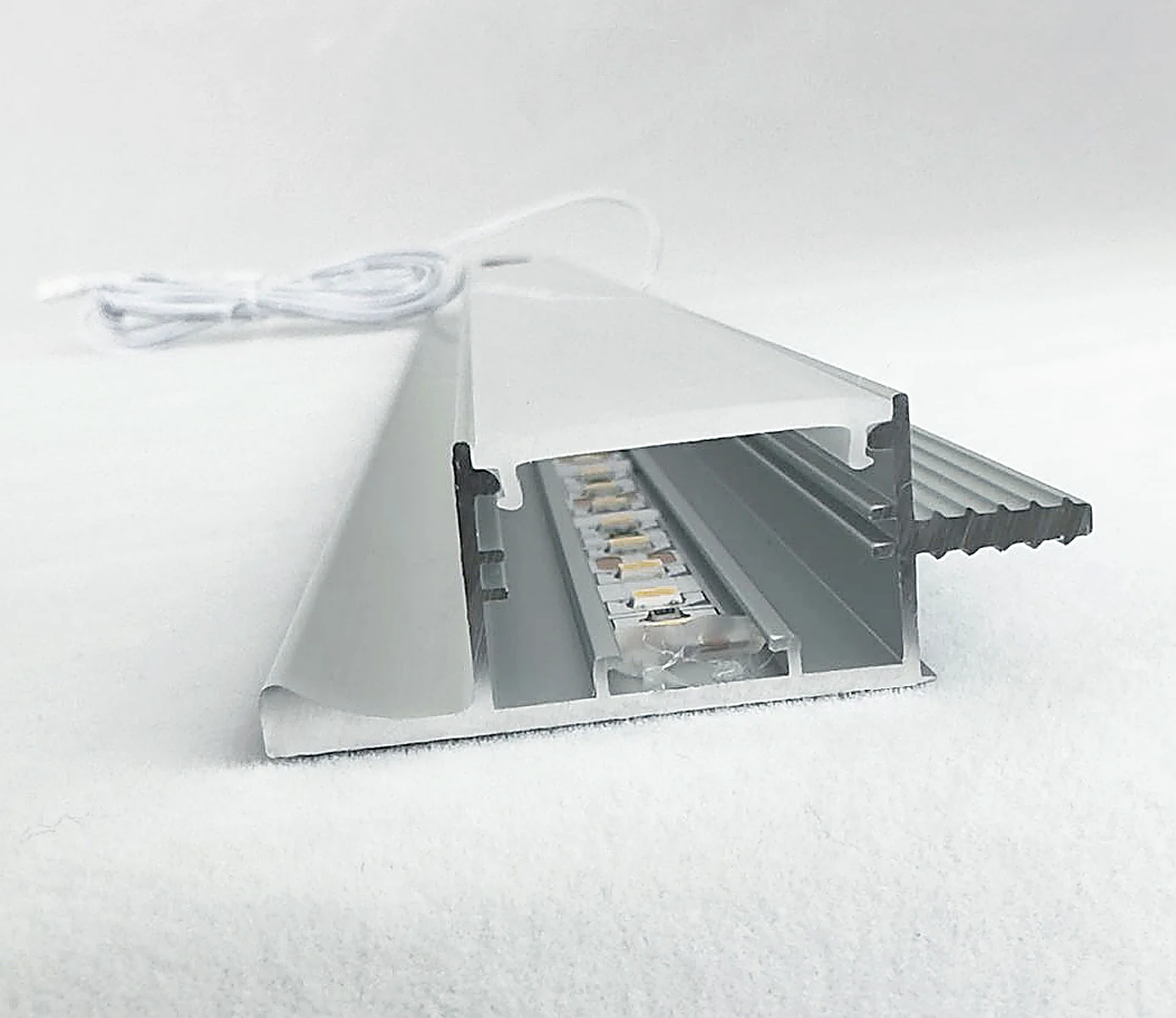

PC diffuser softens LED output for clean, directional illumination.
Designed for a 3 mm cupboard cut-out in furniture-line assembly.

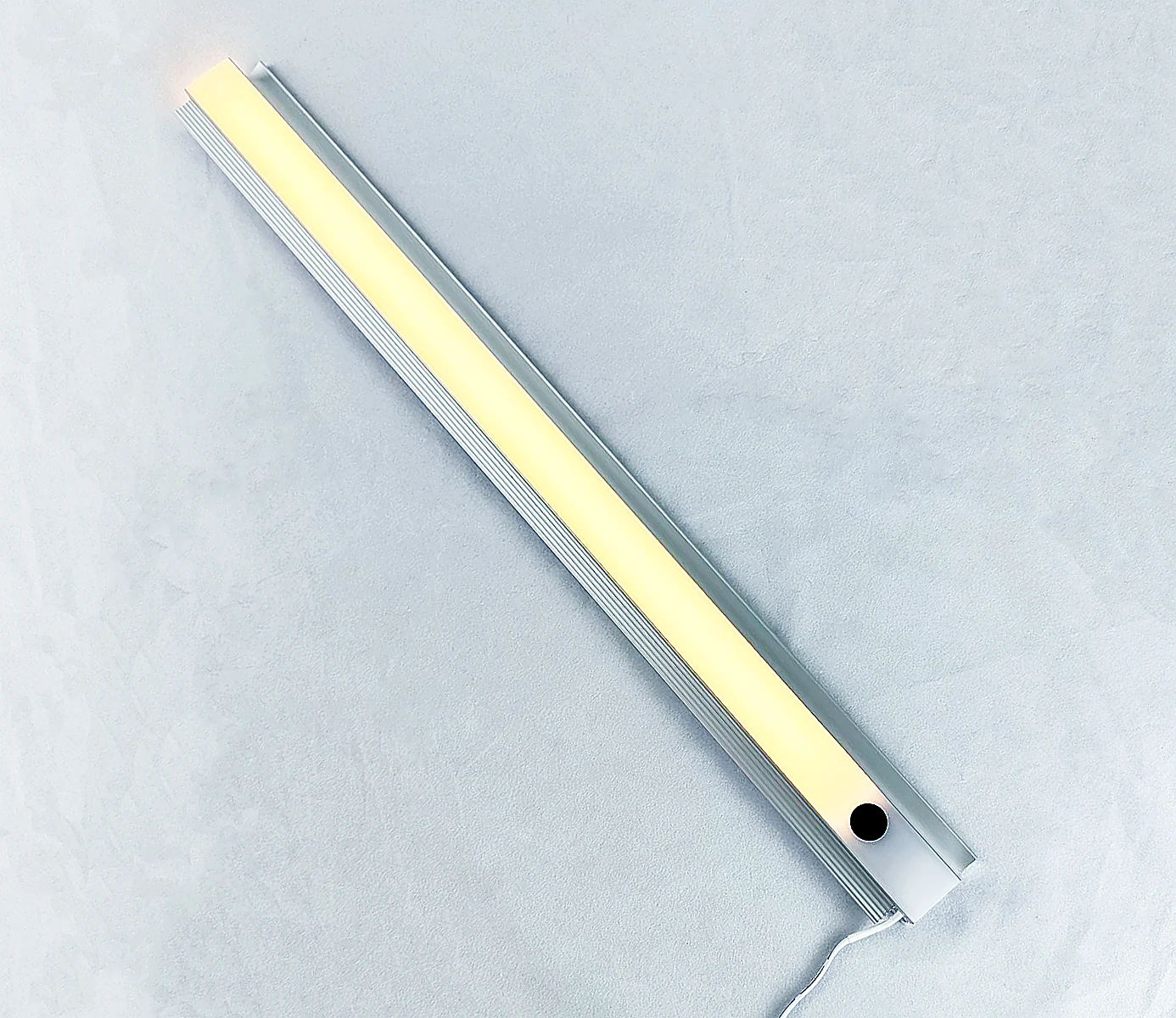

Cut-to-length supply with optional 24Vdc and sensor packages.
| SKU | LA3716 | Finish | Anodized Aluminum |
|---|---|---|---|
| Size | 37x16mm | Material | Aluminum + PC |
| Power | 8W/meter | Voltage | 12Vdc |
| CCT Options | On request | CRI | Ra>90 |
| Lumen Output | On request | Optic | PC Diffuser |
| IP Rating | IP20 / Optional 24Vdc | Mounting | 3 mm cut-out press-fit |
| Dimming / Control | IR / Touch optional | Length | Variable / free-cut |
| Installation | Under cabinet / cupboard edge / furniture lighting | Warranty | 3 years |
| Driver | External driver required | MOQ | On request |
CE/UKCA/Class III/RoHS compliant for kitchen cabinet lighting applications.

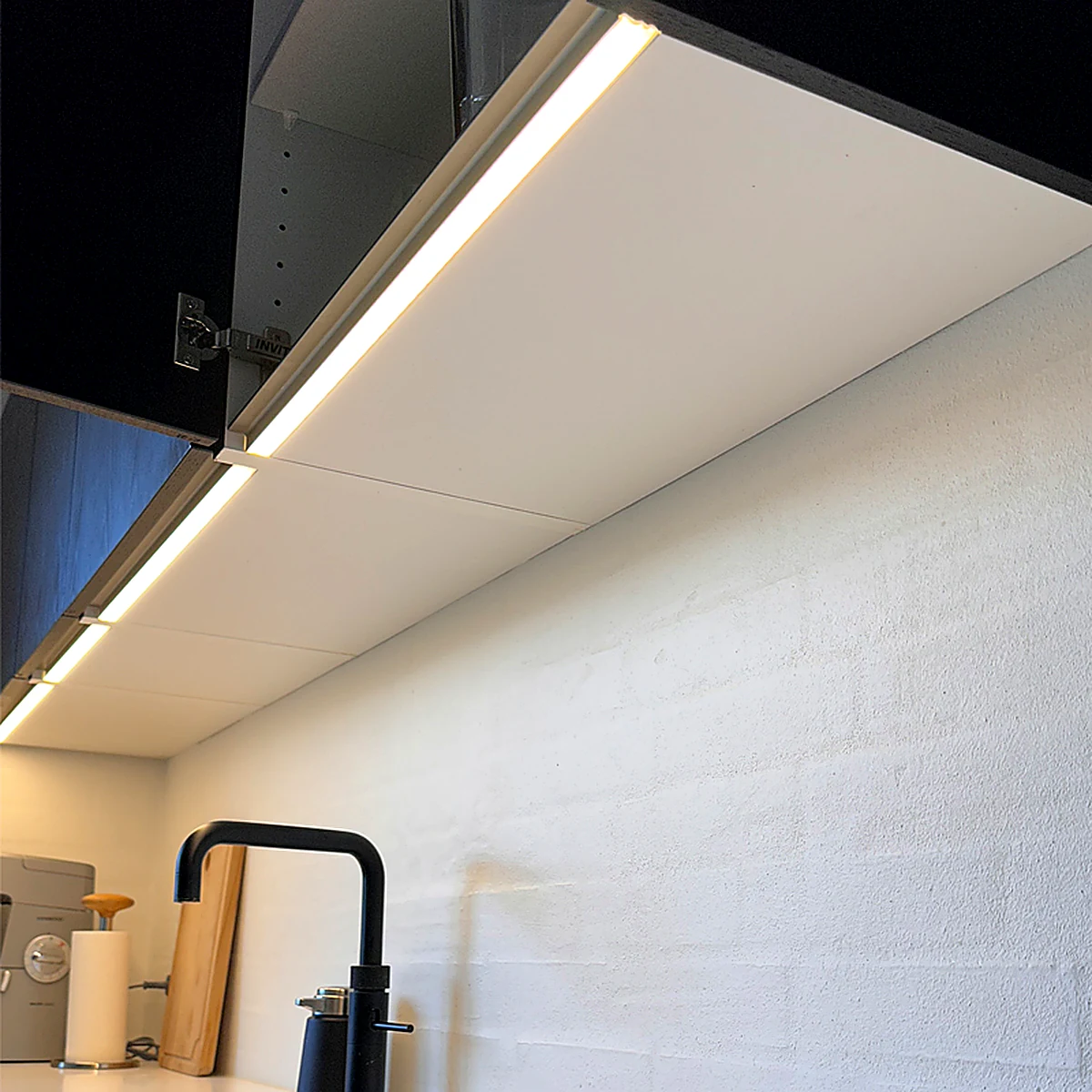

AuraEdge Handle-free LED Aluminum Profile (LA3716) is suitable for modern handleless kitchen cabinets that need a recessed finger-pull edge and continuous undercabinet task lighting in one profile.
Room size: Kitchen / cabinet run 2-8 m | Lighting: 200-500 lux task lighting

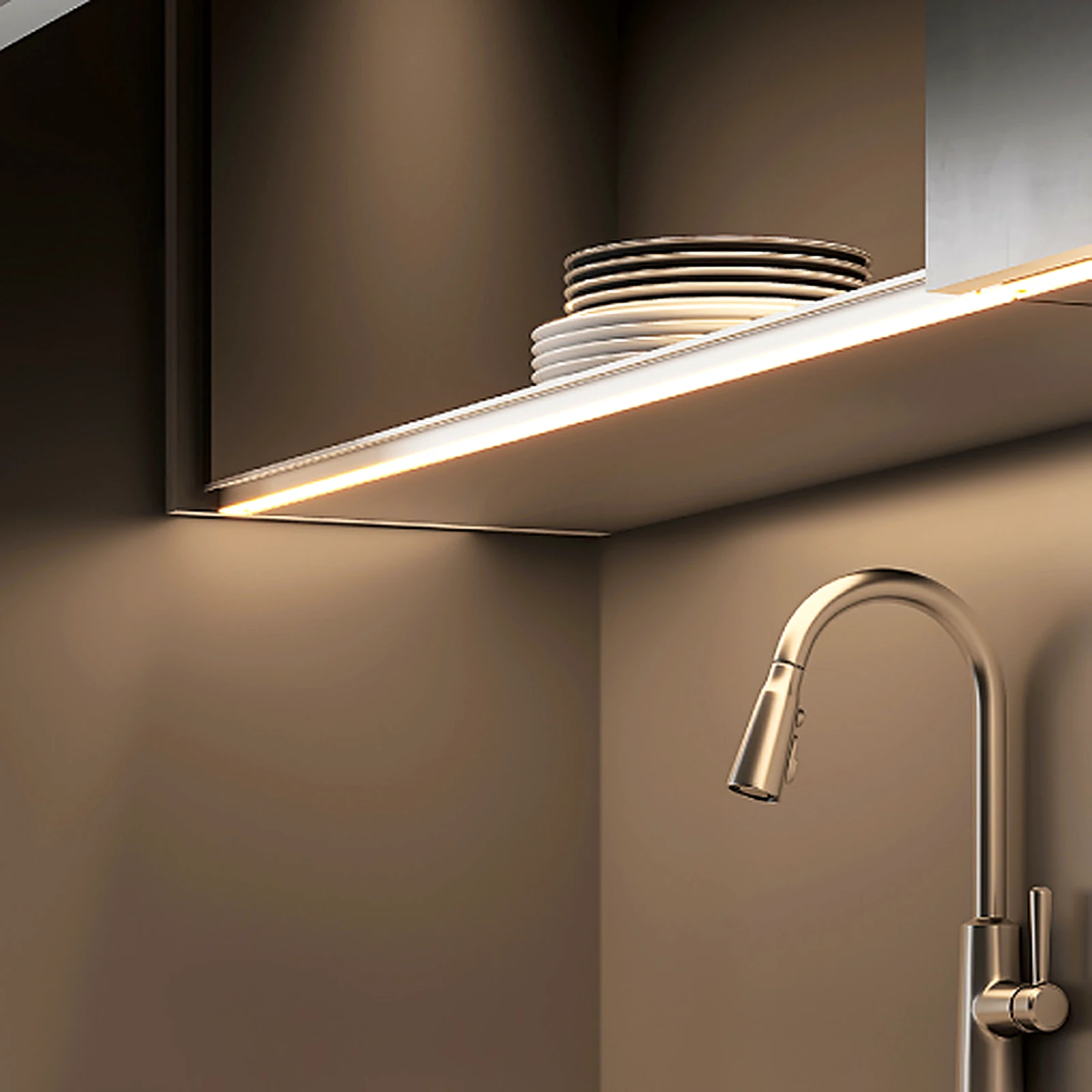

The directional PC diffuser supports worktop illumination for residential kitchens, apartment projects and furniture OEM supply.
Press-fit mounting into a 3 mm cupboard cut-out for efficient assembly-line installation.

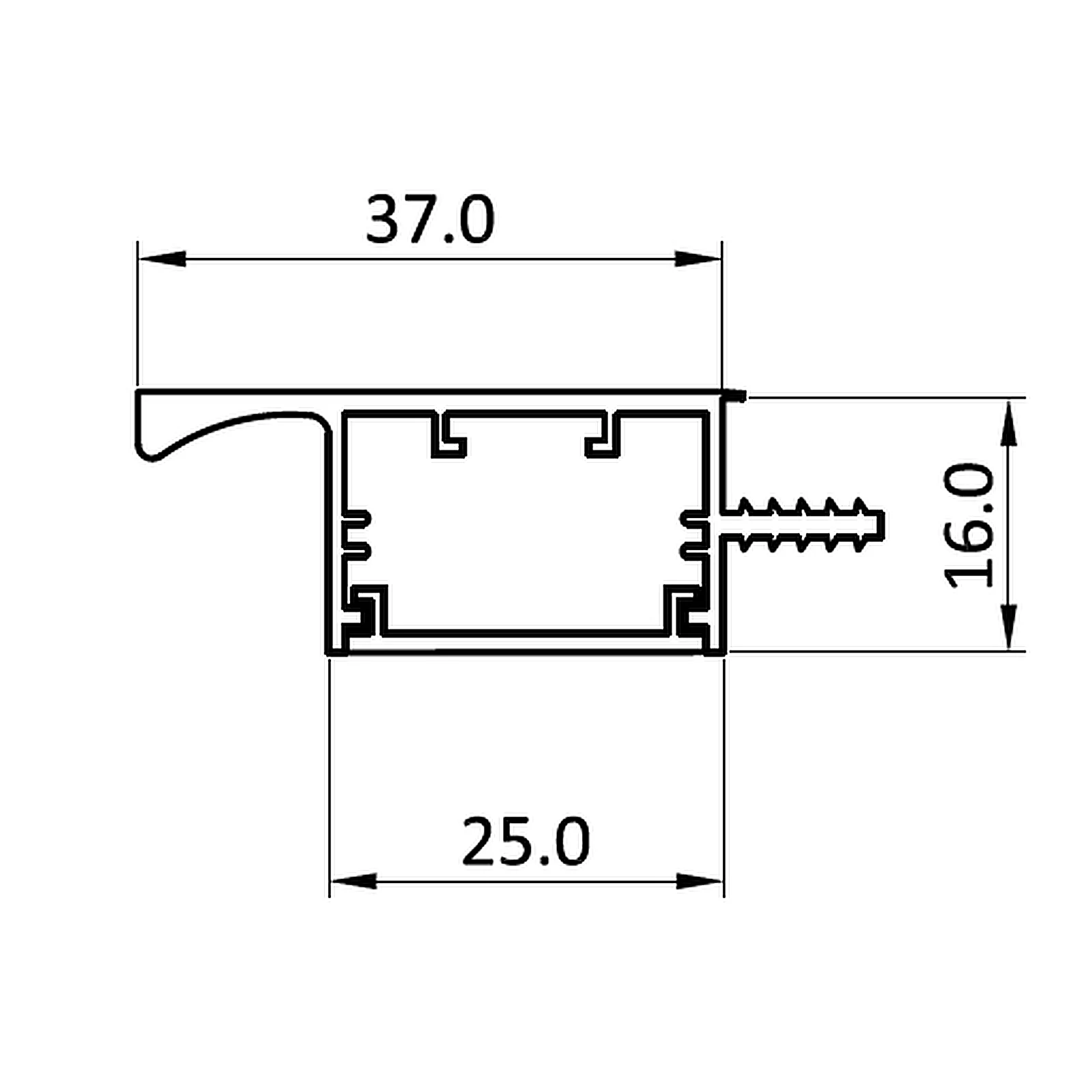

The cross-section shown on this page is 37x16mm. Lengths can be supplied as free-cut / variable lengths upon request.
This product is specified for 12Vdc low-voltage supply with an external LED driver.
Yes. It is designed for undercabinet kitchen and furniture lighting. Optional 24Vdc versions are available for bathroom cabinet use when specified.
Yes. Length, IP rating, sensors, packaging, MOQ and project supply details can be confirmed during quotation.
The standard warranty is 3 years unless a project agreement states otherwise.
