COOLCUT Super High Efficient LED Strip · LF0105N
Super high efficient 12V LED strip engineered for precise furniture lighting: minimum cutting length under 8.3 mm and Ra>90 colour quality in one compact COOLCUT solution.
High-efficacy LED strip design delivers strong light output with lower energy use for continuous cabinet and furniture runs.

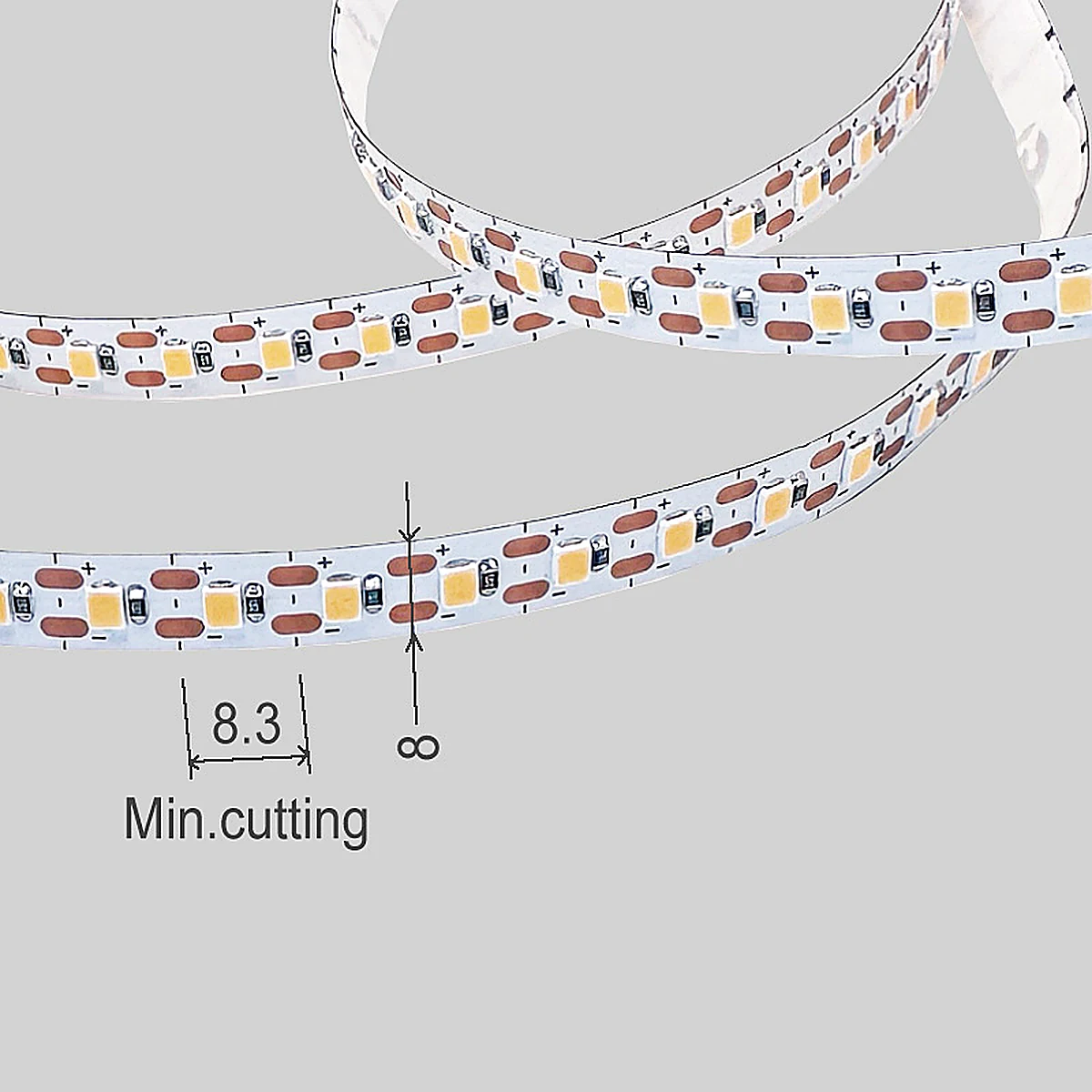

Ultra-short minimum cutting length under 8.3 mm lets installers trim to exact openings without wasting strip length.
High CRI (Ra>90) keeps finishes, food and interiors looking natural under warm task and accent lighting.
3M tape mounting and COOLCUT freecut geometry suit wardrobes, kitchens and display furniture assembly.
| SKU | LF0105N | Series | COOLCUT |
|---|---|---|---|

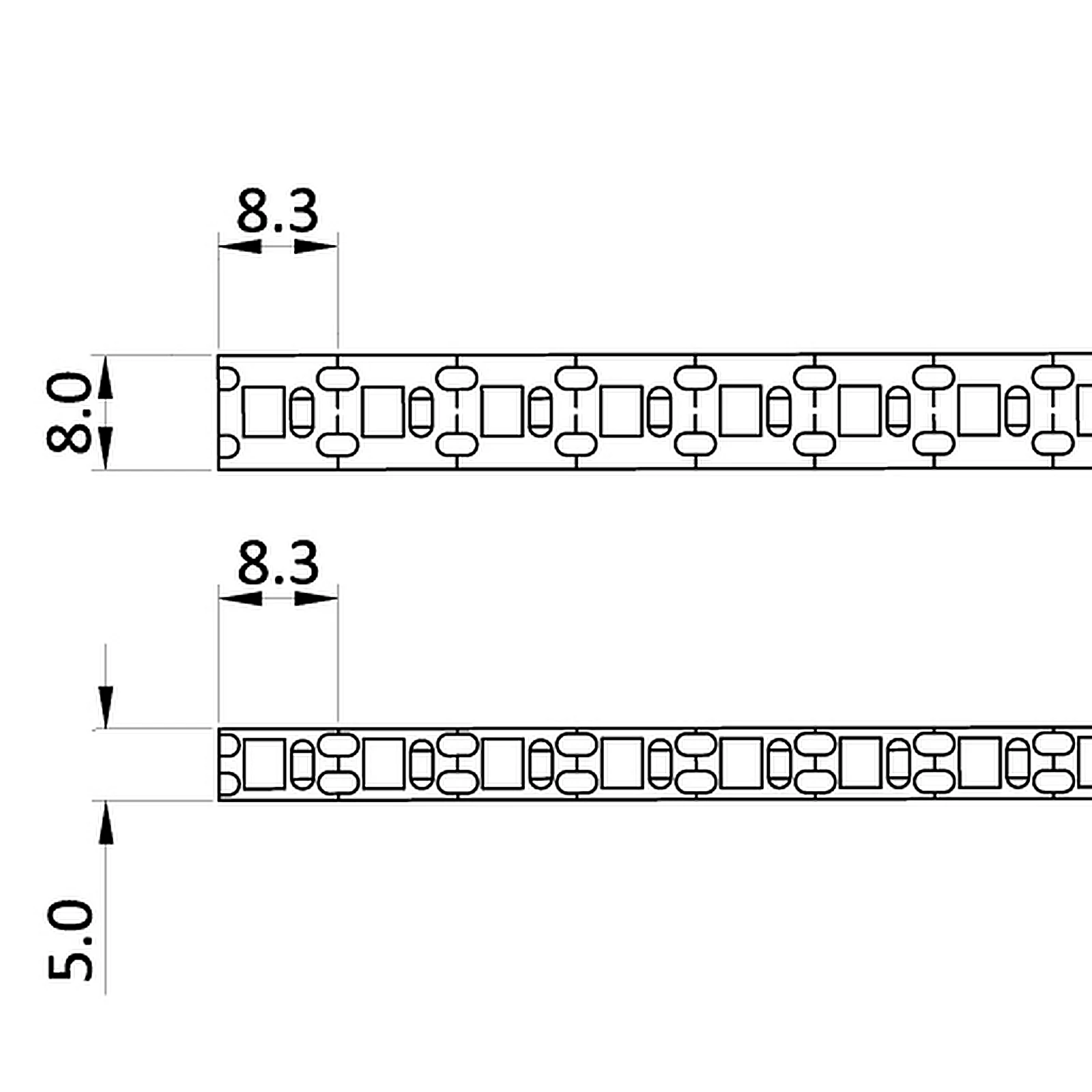

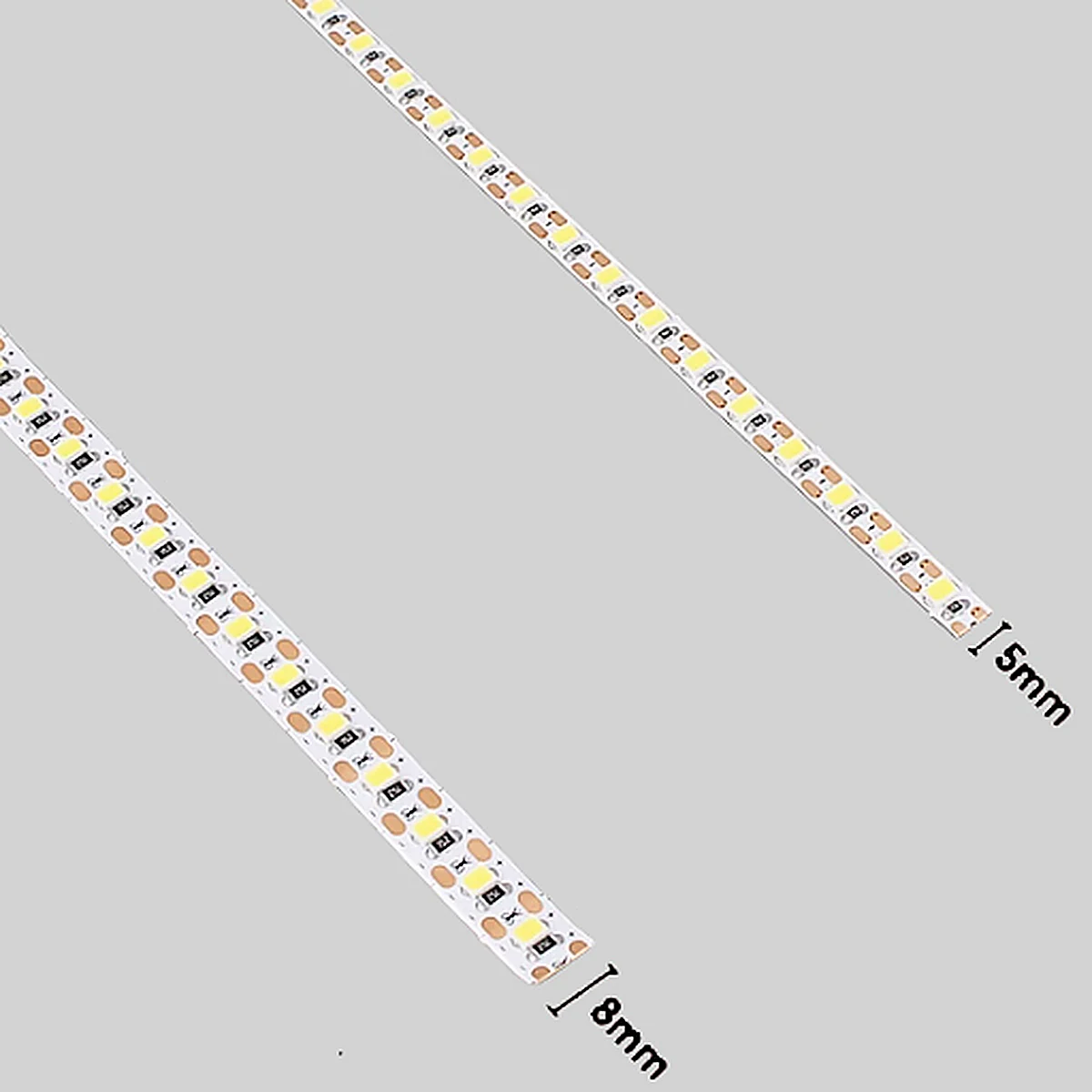

| Strip width | 8 mm | Min. cutting length | < 8.3 mm |
| Efficiency | Super high efficient (>137 lm/W class) | Voltage | 12Vdc |
| CCT Options | 3000K (other CCTs on request) | CRI | Ra>90 |
| Mounting | 3M double-sided tape | IP Rating | IP20 |
| Material | Flexible LED strip (PCB) | Dimming / Control | Compatible drivers / sensors on request |
| Length / Pack | Variable / freecut on request | Installation | Cabinet, wardrobe, furniture lighting |
| Driver | External 12Vdc LED driver required | Warranty | 3 years |
| MOQ | On request | Notes | Confirm final lm/W and packing on datasheet / quotation |
CE/UKCA/Class III/RoHS compliant for cabinet lighting applications.
COOLCUT LF0105N is built for projects that need a super high efficient LED strip, minimum cutting length under 8.3 mm, and Ra>90 light quality in wardrobes, kitchens and display furniture.

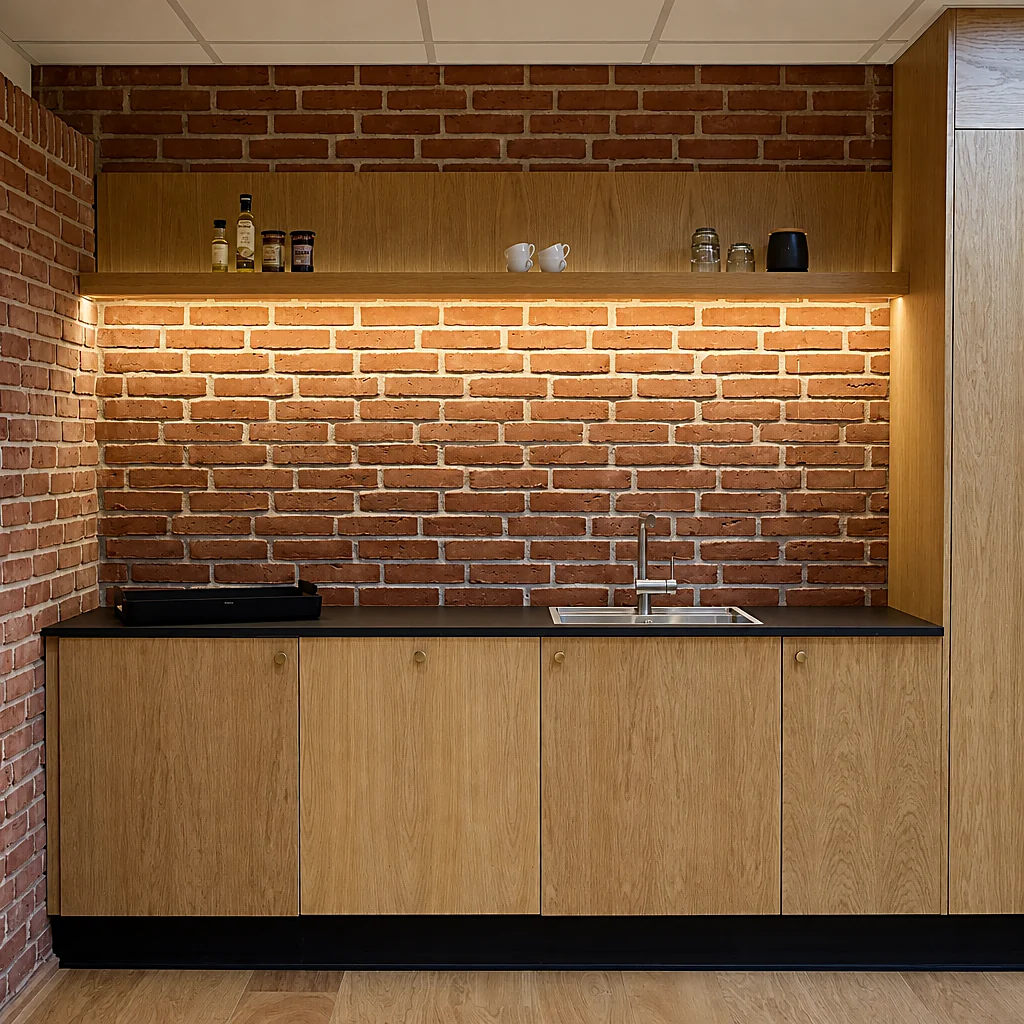

Room size: Cabinet / wardrobe runs | Lighting: High-efficacy task and accent lighting
Short cut units reduce scrap on custom openings, while Ra>90 keeps materials looking true under warm 3000K light.
COOLCUT LF0105N is specified as a super high efficient LED strip (high lm/W class, typically >137 lm/W depending on CCT/bin). Confirm exact efficacy on the datasheet when quoting projects.

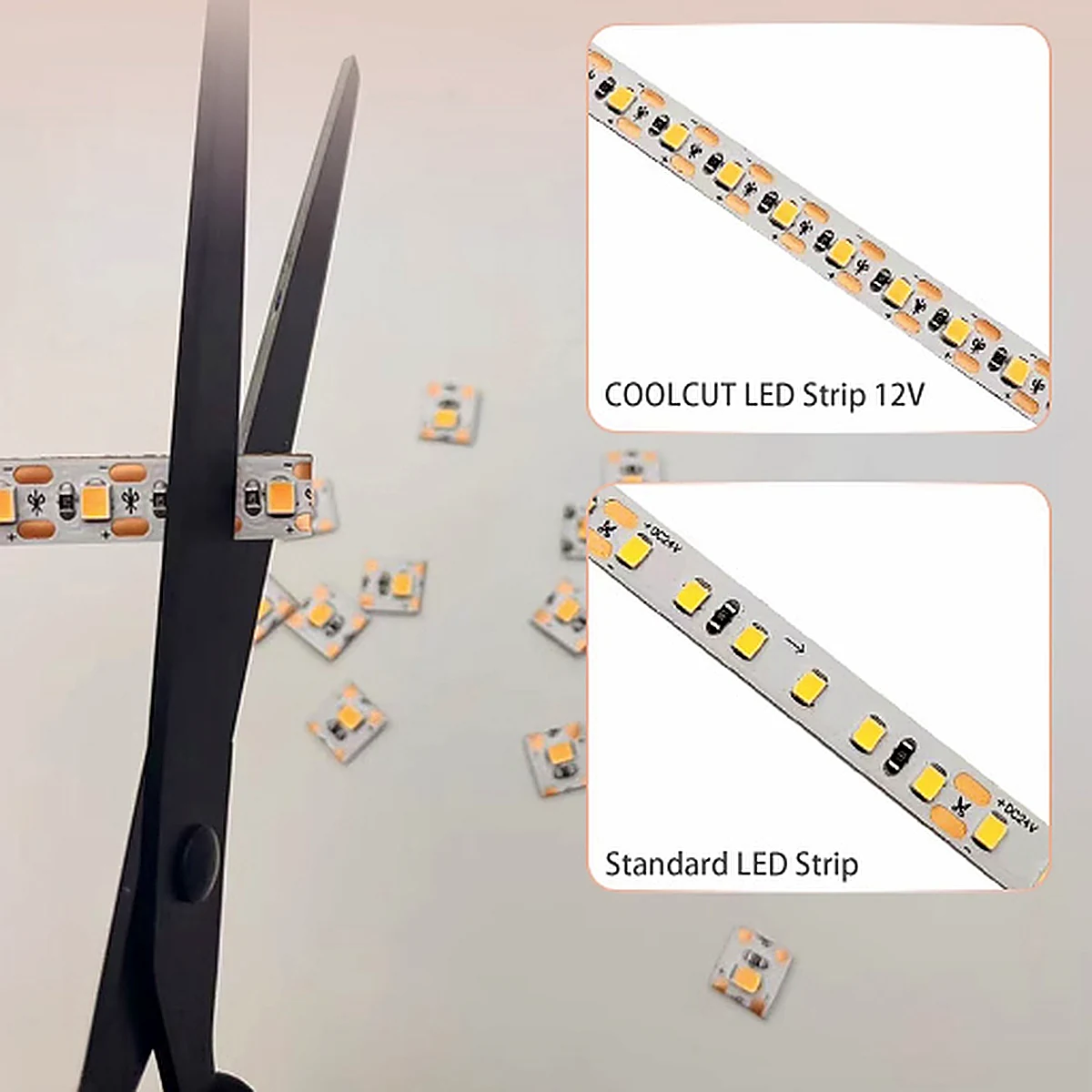

Minimum cutting length is under 8.3 mm, so you can freecut to tight furniture openings with less wasted strip.
Colour rendering is Ra>90 for natural, premium rendering of finishes and interiors.
This version is 12Vdc and needs a matching external LED driver. Pair with NewThingLine drivers and connectors for a complete system.
Use the Downloads section on this page for the product datasheet. Additional drawings and project options can be confirmed during quotation.
