Furniture lighting accessories · L803-6
The NewThingLine L803-6 brings up to six compatible LED light connections together in one compact distribution box. It is designed for furniture lighting installations where several lights connect to the same IR or PIR sensor.
Connect several compatible cabinet or furniture lights to a common IR or PIR sensor circuit.
Plan the installation around the specified 12–24 V DC input, per-port current and total current ratings.
The white distribution box keeps six plug connections together for furniture lighting layouts.
Use L803-6 as a distribution point for compatible LED lighting in wardrobes, cabinets and other furniture lighting projects. The datasheet describes it as an accessory for IR and PIR sensors when multiple lights must connect to the same sensor.
Before ordering, confirm connector geometry, polarity, driver output, sensor compatibility, available space and the total load of all connected lights. The box distributes power; it does not replace a suitable power supply or sensor.
| Product / model | 6-way LED light distributor / L803-6 |
|---|---|
| Outputs | 6 ports |
| Rated voltage | 12–24 V DC |
| Maximum total current | 7 A at 12 V DC; 3.5 A at 24 V DC |
| Maximum current per port | 3 A |
| Cable length | 0.1 m; customization available |
| Wire type / cross-section | H03VVH2-F / 0.75 mm² |
| Wire certification | VDE (as stated in the supplied datasheet) |
| Material / finish | PVC and copper / white |

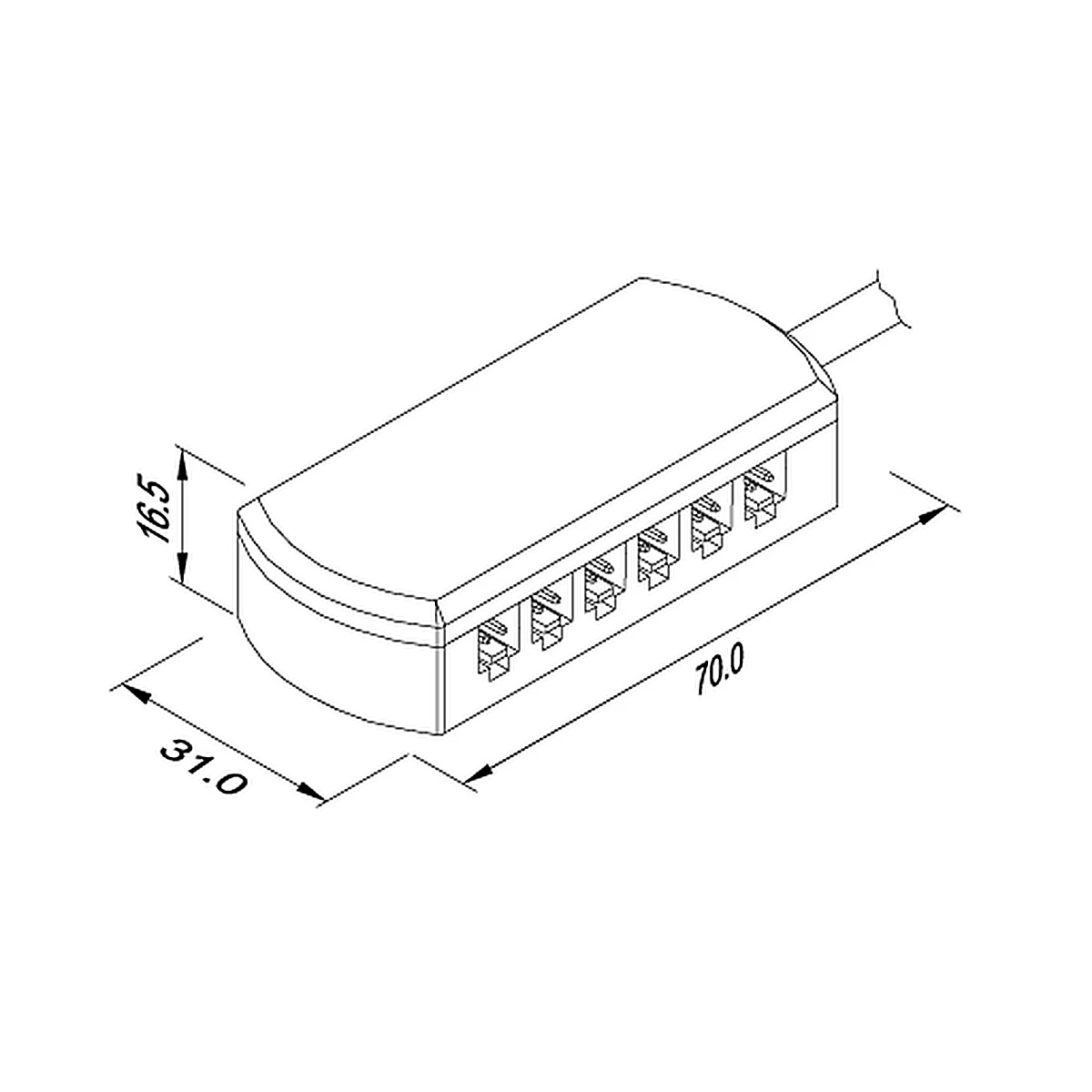

| Housing size | 70 × 31 × 16.5 mm (supplied drawing) |
| Safety class | Class III |
The datasheet heading says “12V” while its electrical table specifies 12–24 V DC. Confirm the selected voltage and connector configuration against the approved project sample before placing an order.
The supplied Rev0 datasheet lists Class III and marks CE, RoHS and REACH as “yes.” Request current compliance documents and confirm the configuration required for your destination market. An IP rating or UKCA certification is not specified in the supplied sheet.
Download L803-6 Datasheet (PDF)Datasheet link uses the existing media URL from the supplied page; verify that it opens the L803-6 Rev0 document.
The datasheet describes this distributor for several lights connected to the same IR or PIR sensor. Check that the chosen sensor, driver and connected lights are mutually compatible and within their rated current limits.
The datasheet electrical table specifies 12–24 V DC, with a 7 A total limit at 12 V and 3.5 A at 24 V. Do not mix voltage families in one installation; confirm the chosen configuration before ordering.
Each port is limited to 3 A. The sum of all connected outputs must also stay within the relevant total current rating.
Yes. The supplied datasheet lists a 0.1 m length and indicates that it can be customized. Specify the required length when requesting a quote.
Share your voltage, sensor model, light quantities, connector requirements and cable length so we can check compatibility and prepare a quotation.
