IR Switch & Controller · IR025W
The NewThingLine IR025W IR sensor switch controls 12/24Vdc LED lighting in dual-door wardrobes and cabinets. Its two Ø8 mm recessed sensor heads detect door movement within 0–8 cm, while the controller provides smooth fade on/off switching. Specify it for furniture lighting projects that need one controller to monitor two openings.

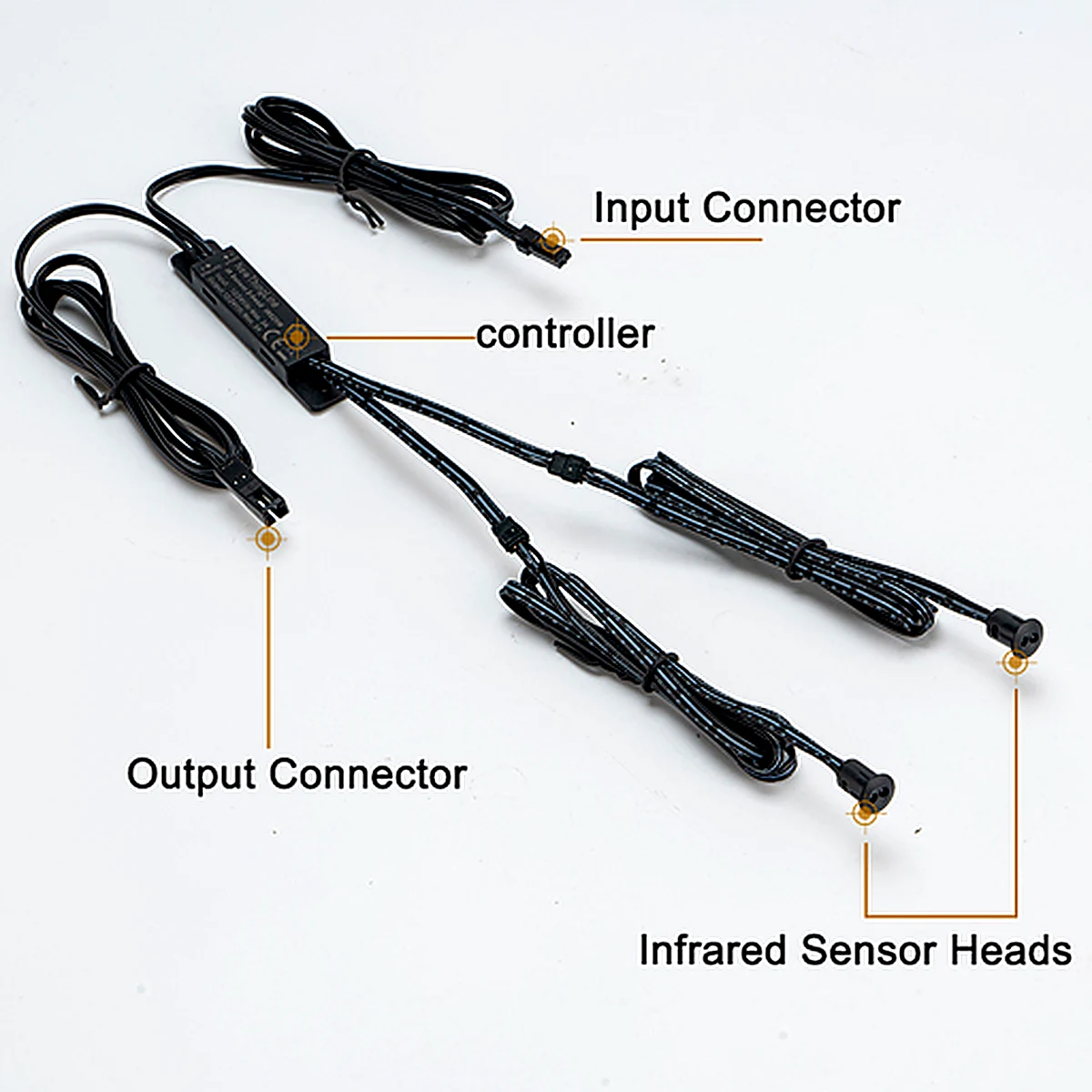

One controller with two IR heads for dual-door wardrobes or paired cabinet openings.
Each head fits an 8 mm drilled hole; surface-mount clips remain optional.
Short-range IR sensing suits furniture door gaps without false long-range triggers.
Connect compatible LED products through a suitably rated distributor box.
| SKU | IR025W | Category | Switch and Controller |
|---|---|---|---|
| Model | IR Sensor-2 Heads | Sensor heads | 2 |
| Controller size | 73 × 14.6 × 7.2 mm | Finish | Black / White / Silver grey |
| Voltage | 12/24 Vdc | Working current | 3A max |
| IP Rating | IP20 | Safety class | Class III (SELV) |
| Detection range | 0–8 cm | Recess hole | Ø8 mm / depth 10 mm |
| Mounting | Recess (surface optional) | Control | IR on/off with fade |

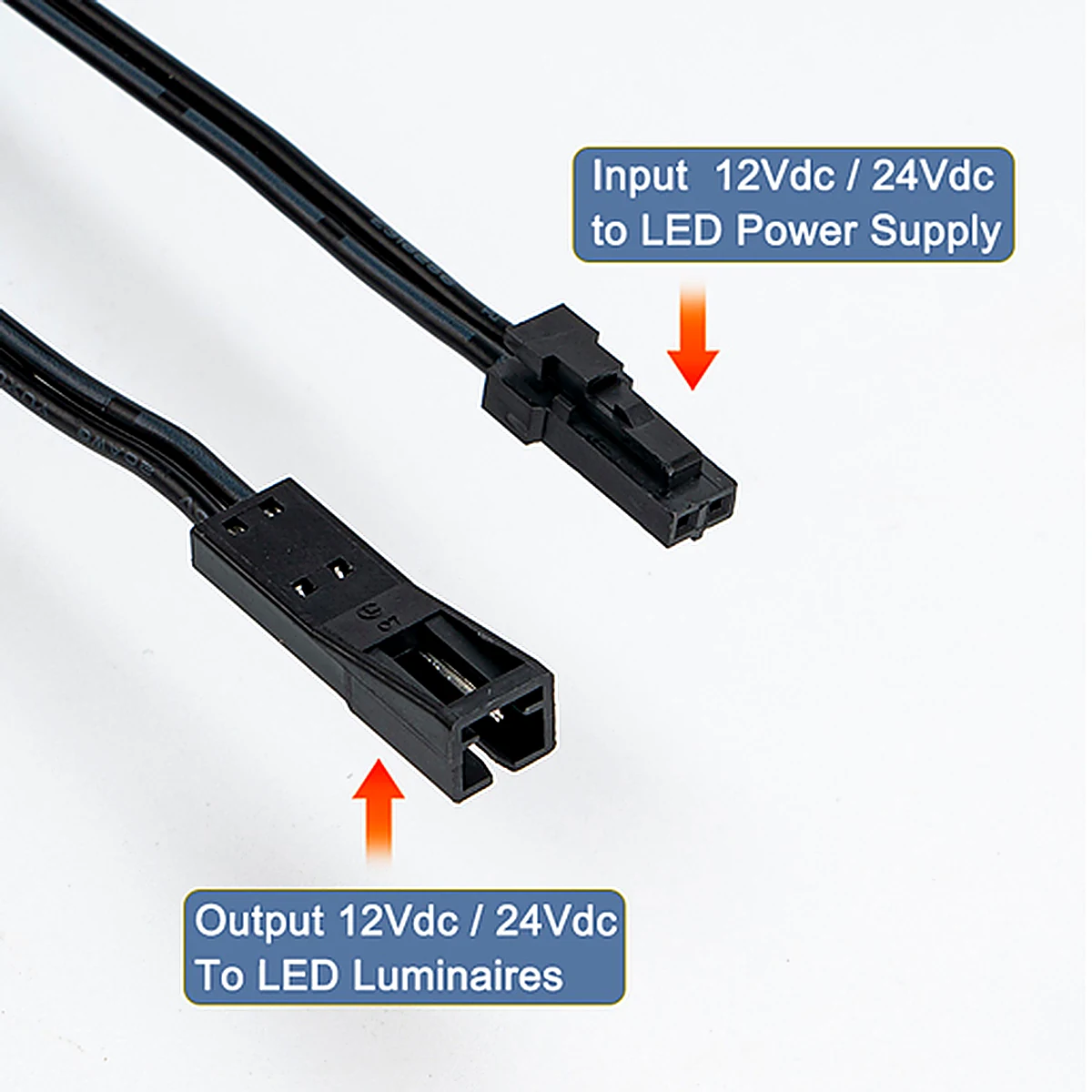

| Input wire | 1 m | Output wire | 1 m |
| Installation | Wardrobe / cabinet / furniture LED | Warranty | 3 years |
| Certifications | CE / UKCA / RoHS | Notes | Match 12/24Vdc LED load and connector family |
CE, UKCA, Class III (SELV), and RoHS compliant for low-voltage switch and controller applications (IP20).
Controller body and recess sensor-head dimensions are shown above. Confirm final cut-out details on the datasheet before production.

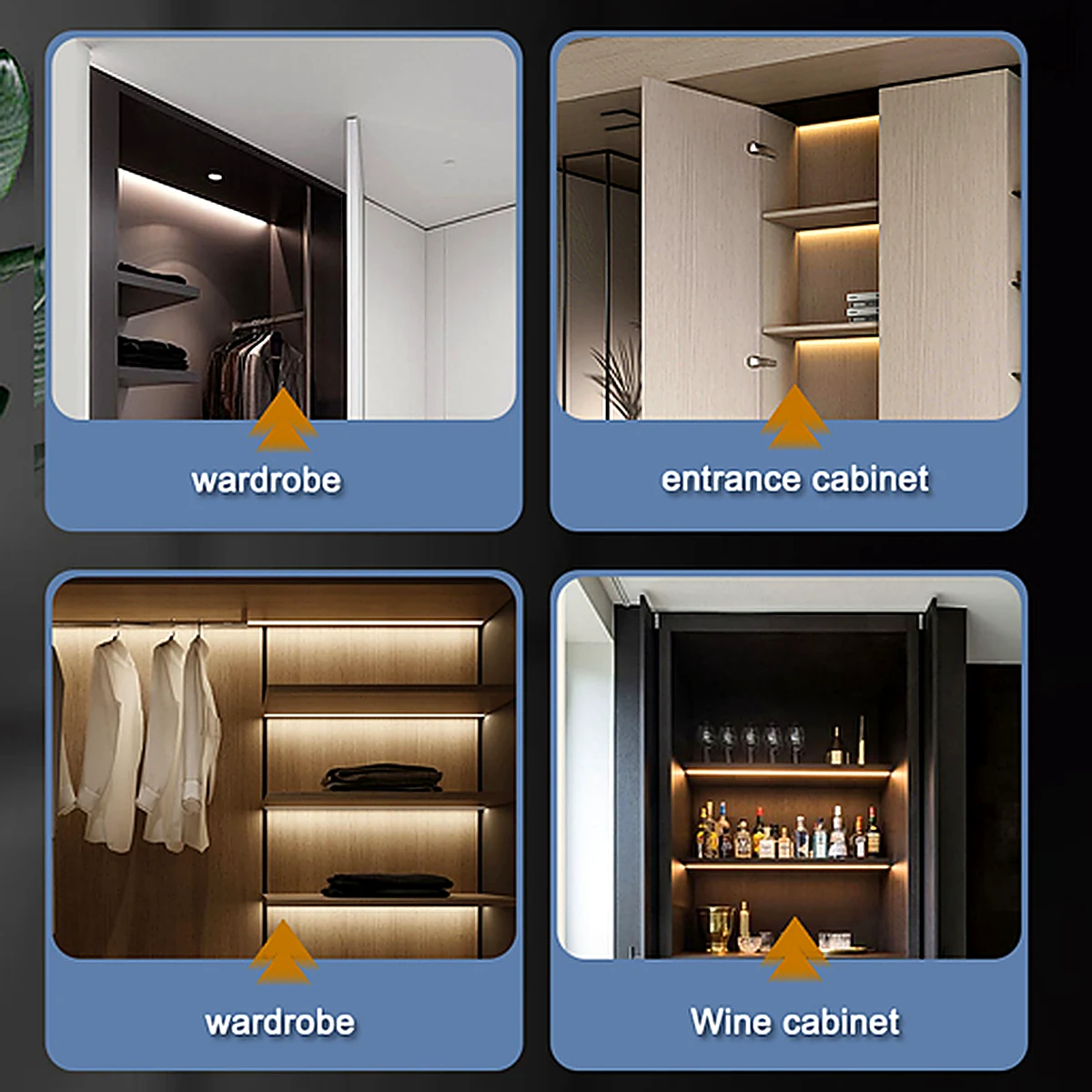

IR Sensor-2 Heads (IR025W) adds automatic on/off sensing for two-door wardrobes, entrance cabinets and wine-cabinet LED circuits.
Use case: Door open → light on (dual heads) | Pairing: 12/24Vdc LED power supply + distributor box
Ask NewThingLine for wiring diagrams and compatible distributors when specifying multi-door furniture.
3D CAD files are available for approved distributors and project partners.
Request 3D CAD AccessThe primary code on this page is IR025W. Confirm finish colour and packing when requesting a quote.
IR025W provides two IR sensor heads on one controller for dual-door sensing. IR024W has a single sensor head.
IR025W is specified for 12/24 Vdc with up to 3A working current. Always match the LED load and power-supply rating before installation.

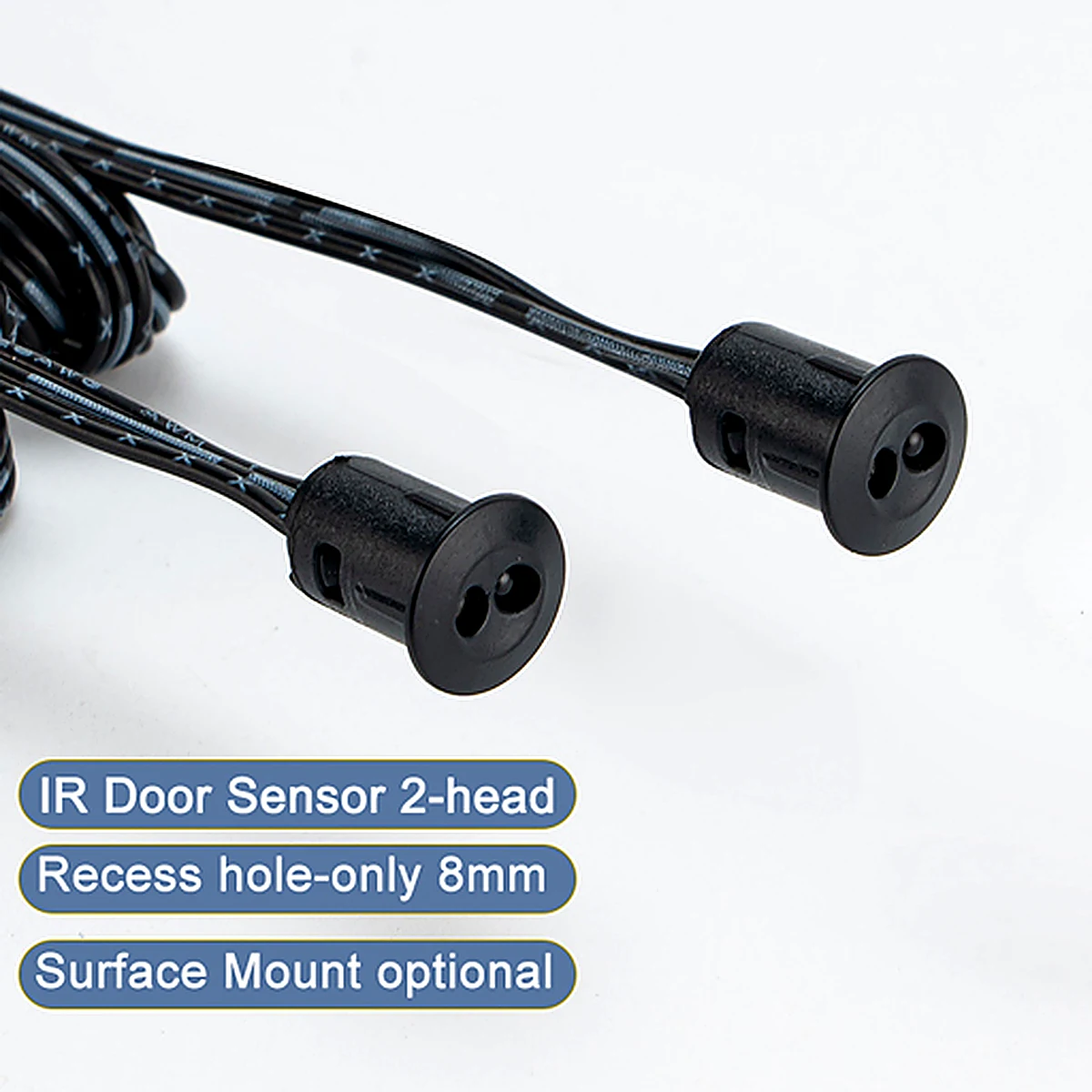

Each recess sensor head needs an Ø8 mm hole (about 10 mm depth). Surface-mount installation is optional with clips.
Use the Downloads section on this page for the IR025W product datasheet. Dimension details are also shown in the Dimension Drawing section.
