Accessories · Angled Euro Plug
Choose ZW004F or ZW007F to match the required 90° cable-exit orientation in tight furniture cavities.
TUV-SUD certified Euro plug design for EU projects, with CE / UKCA / RoHS documentation support.
Rated for standard Euro plug accessory loads used with furniture lighting systems.
Order cable length to suit cabinet, wardrobe and under-cabinet wiring routes.
| SKU | ZW007F | Angle Direction | Direction B (ZW007F) |
|---|---|---|---|
| Product | 90 Degree Angled Euro Plug | Category | Accessories |
| Rating | 250V~, 2.5A | Certification | TUV-SUD / CE / UKCA / RoHS |
| Cable Length | Customizable | Mounting | Inline / plug-in |
| Sister Model | ZW004F (Direction A) | Installation | Furniture lighting interconnect |
| Warranty | 1–3 years (see quotation) | MOQ | On request |
CE/UKCA/RoHS compliant accessory supply. TUV-SUD certification available for EU Euro plug applications. Learn more about product testing and certification from TUV SUD.

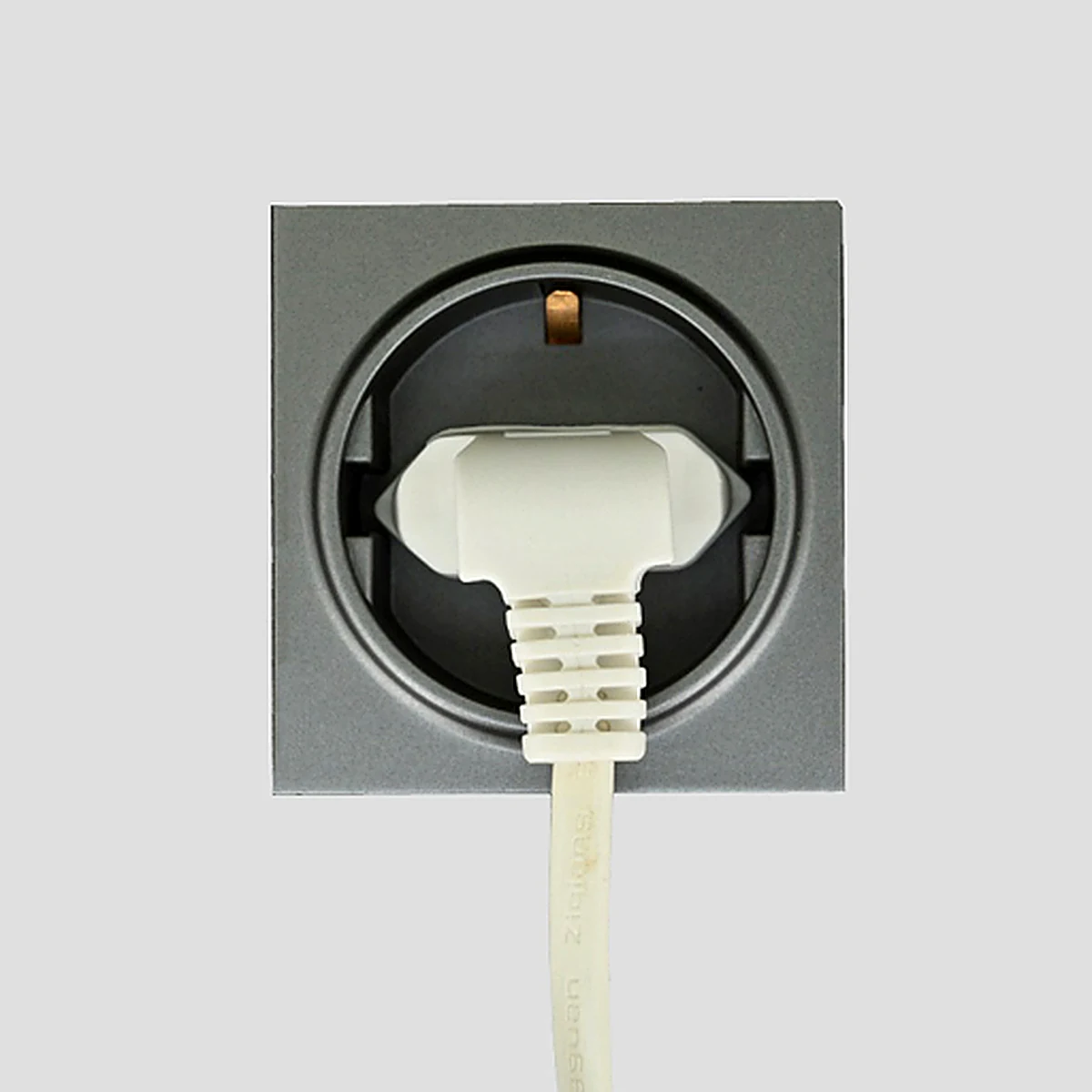

Use this 90° angled Euro plug when a straight plug cannot clear a cabinet back, wall or adjacent fitting. Select ZW004F or ZW007F to match the cable-exit direction required by the installation.
Use case: Limited-space interconnects | System: Match voltage rating and plug family
Suitable for wardrobe lighting, under-cabinet lighting and project wiring kits that need a compact angled Euro plug.

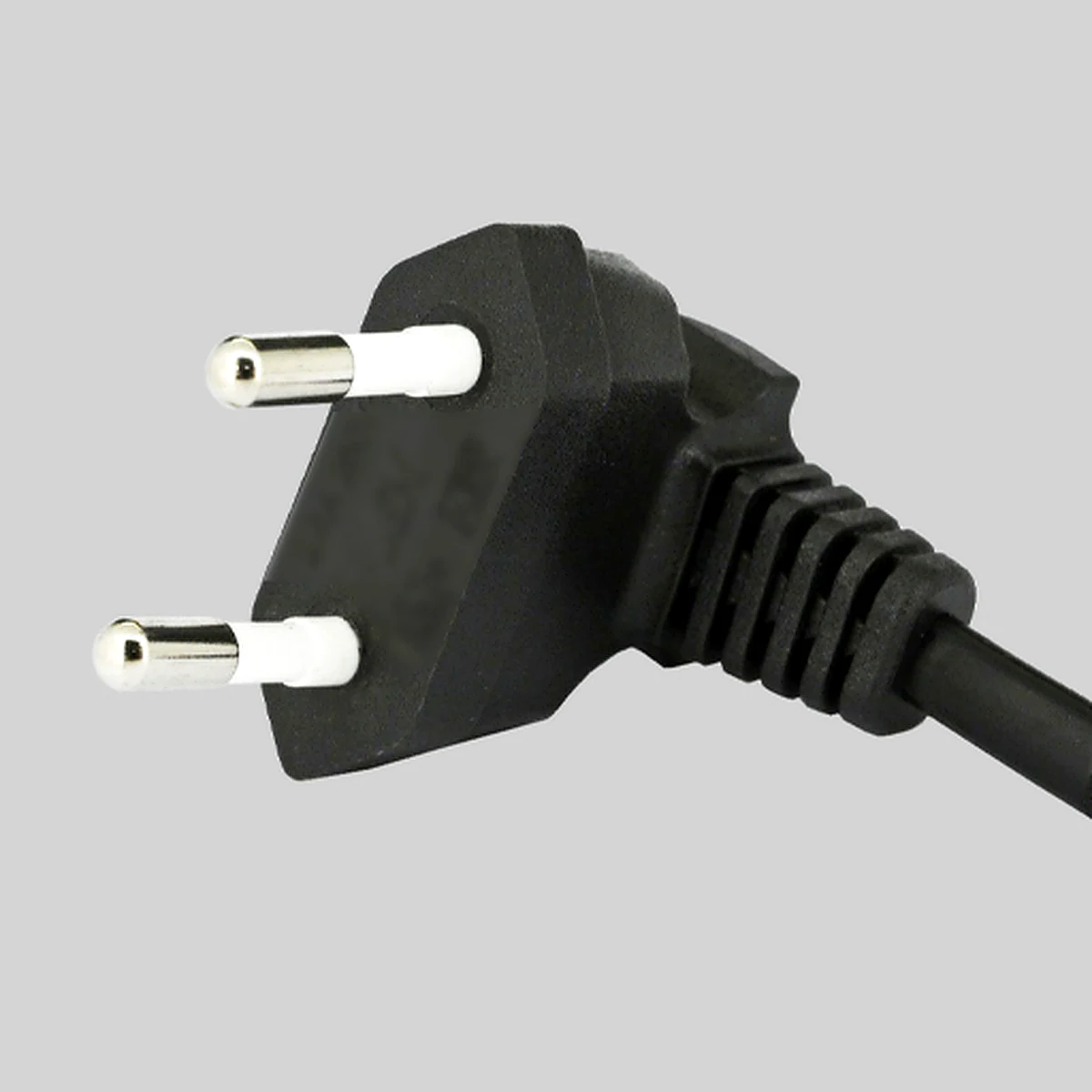

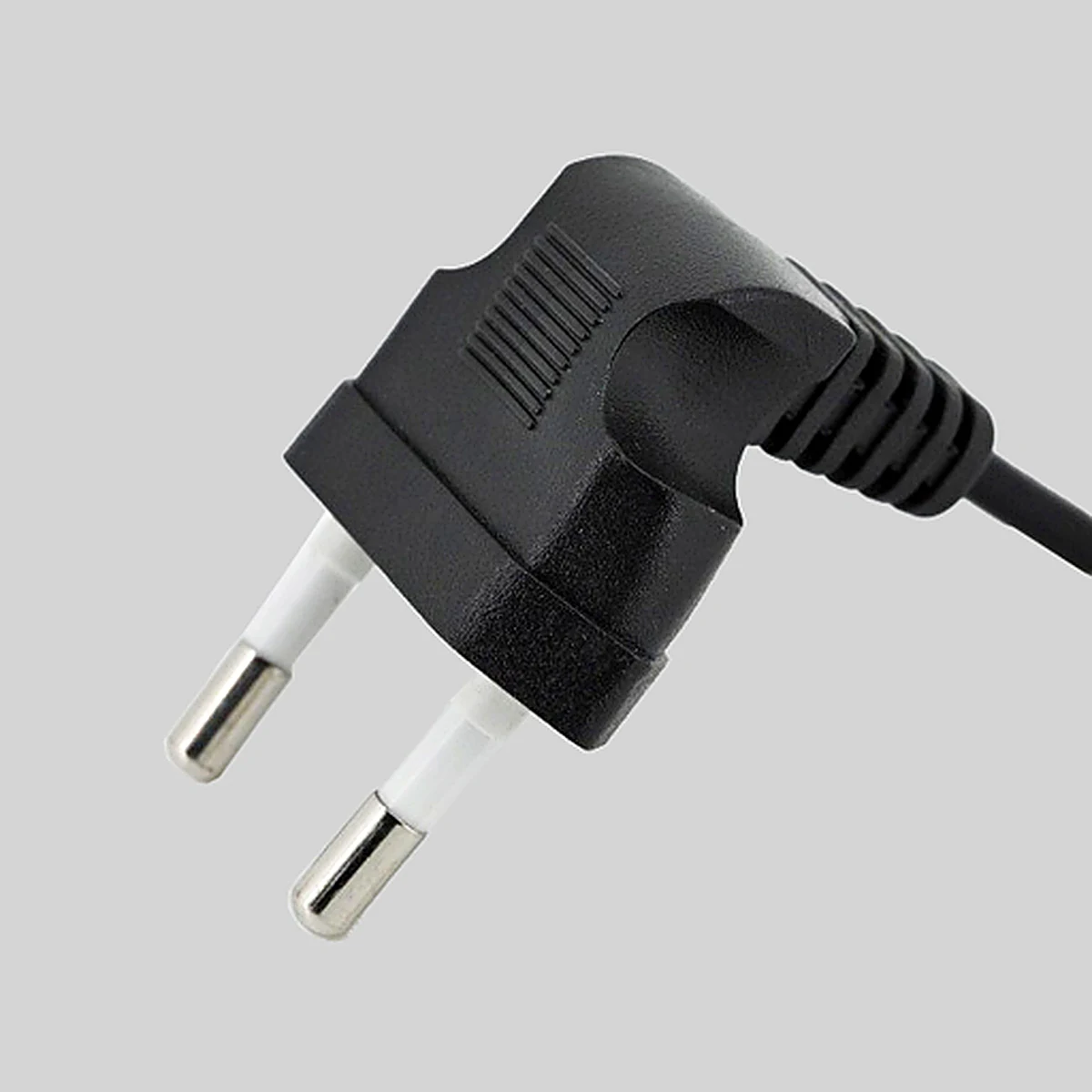

A 90 Degree Angled Euro Plug is useful when the installation space behind a cabinet, wardrobe, display shelf or lighting panel is too shallow for a straight plug. The angled body helps the cable leave the socket sideways, reducing pressure on the plug and keeping the wiring route cleaner inside compact furniture projects.
ZW004F and ZW007F share the same electrical rating and product function, but the cable-exit direction is opposite. Choose ZW004F when the cable needs to turn one way, and choose ZW007F when the layout requires the reverse direction. This makes the 90 Degree Angled Euro Plug series practical for left-side and right-side installation layouts without changing the rest of the lighting system.
For project orders, confirm the final cable length, plug orientation, voltage rating, certification needs and installation clearance before quotation. A 90 Degree Angled Euro Plug should also be checked against the available socket position, bend direction and nearby furniture panels before final assembly. NewThingLine can support OEM furniture lighting kits, distributor supply and customized wiring lengths for compact European plug applications.
3D CAD files are available for approved distributors and project partners.
Request 3D CAD AccessBoth are 90 degree angled Euro plugs with the same electrical rating. They differ only by cable-exit / turn direction. Use the Model / Angle Direction selector to choose the orientation that fits the installation.
Both models are specified for 250V~, 2.5A Euro plug accessory use. Confirm final load and local wiring rules before installation.
Yes. Cable length can be quoted for project and OEM volumes.
Use the Downloads section. Each model has its own datasheet file, and the file updates when you change the selector.
Click Request Quote after selecting ZW004F or ZW007F so the enquiry carries the correct SKU.
