LumaLine EvenGlow Cabinet Light · LS0408F
The 4mm silicon LED strip LumaLine EvenGlow LS0408F provides soft directional light for recessed cabinet, wardrobe and shelf installations. Its slim silicone diffuser keeps the fixture discreet, while a detachable connector simplifies the power connection for furniture projects.
The 4mm silicon LED strip fits narrow furniture details with a 4mm body and 4.5mm flange. It creates a slim light line for cabinet sides, shelves and display niches.
White and frosted silicone construction softens the light source. Choose 3000K for a warm appearance or 4000K for a more neutral appearance, with specified CRI above 90.

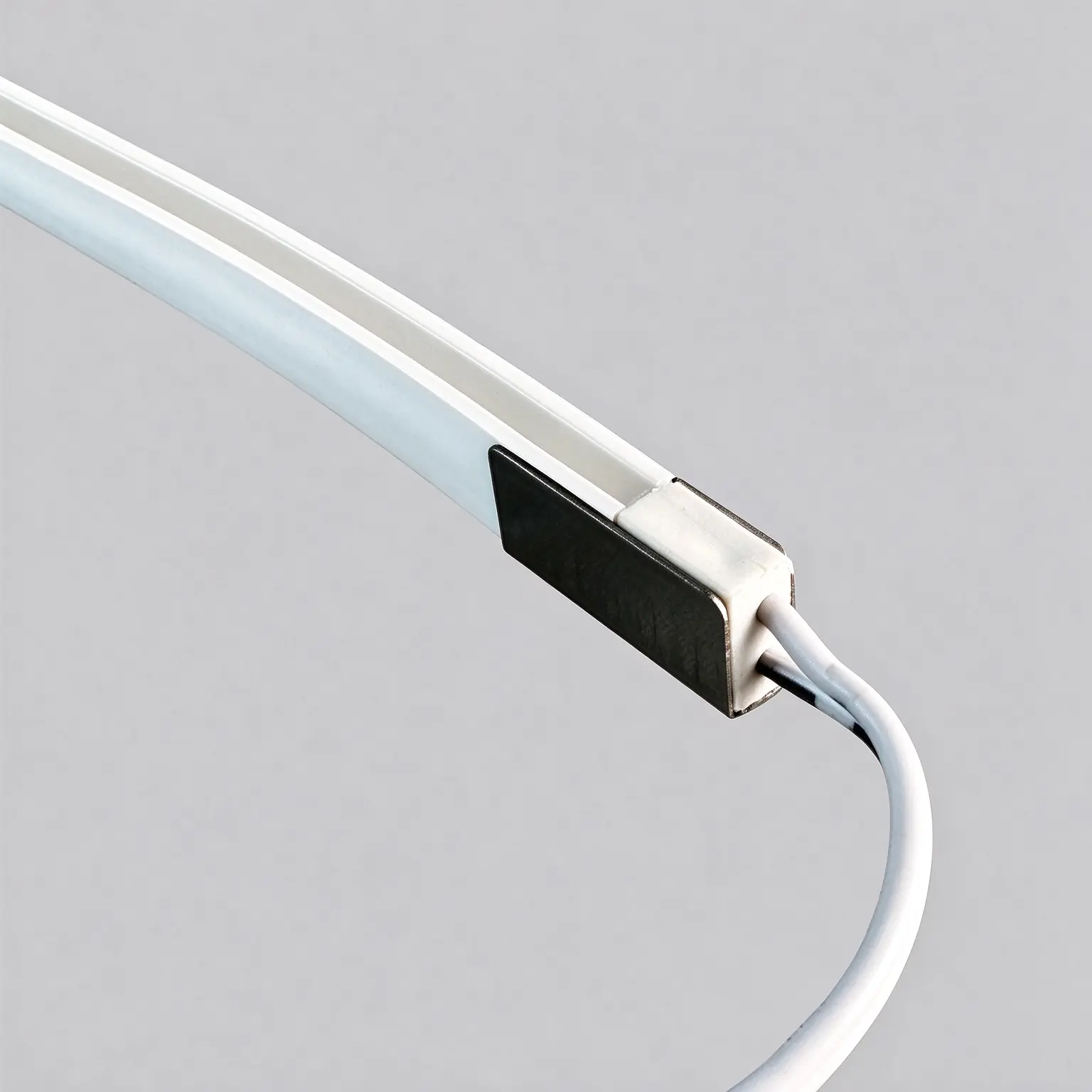

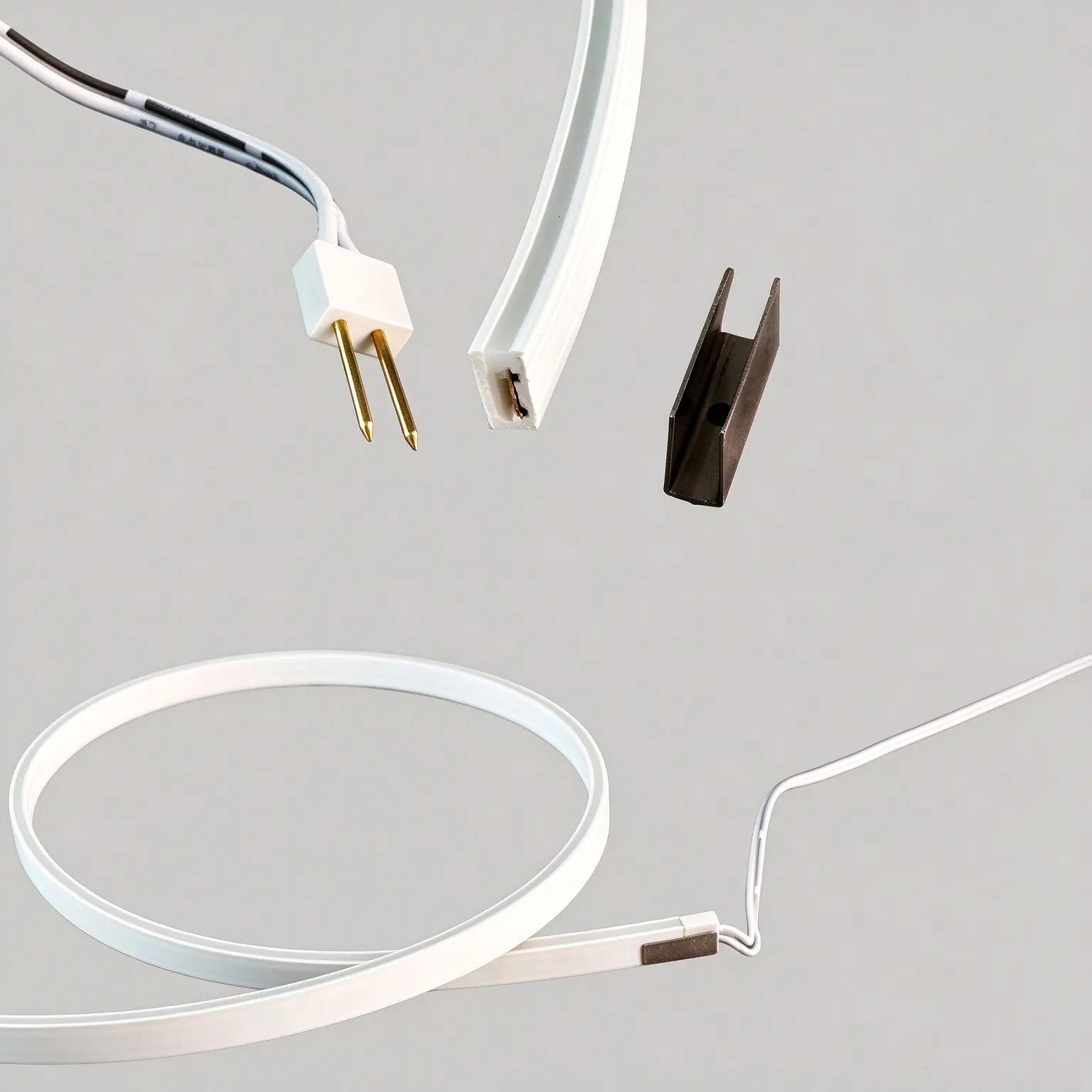

The datasheet lists 8.33mm cutting intervals, ten-meter rolls and customized lengths. A detachable connector supports power connection, and the minimum bending radius is greater than 25mm.
IR or PIR sensors are available for automatic on/off operation. Confirm the sensor, driver and cable arrangement for your project. The related LS0408C provides the surface mount option.
| SKU | LS0408F | Finish | White + frosted |
|---|---|---|---|
| Size | 4mm body / 4.5mm flange; 8mm height | Material | Silicone |
| Power | 7W/m | Voltage | 24V DC |
| CCT Options | 3000K / 4000K | CRI | >90 |
| Light Output | 700lm/m source; 200lm/m useful output | Optic | White and frosted directional diffuser |
| IP Rating | IP20 | Mounting | Recess mount; LS0408C surface mount option |
| Control | IR / PIR sensor options | Length | 10m/roll or customized |
| Cutting Interval | 8.33mm | Minimum Bending Radius | >25mm |
| Input Cable | 2m | Connection | Detachable connector |
| Lifetime | 30,000 hours | Energy Class | F |
| Safety Class | Class III (SELV) | Accessories | Mounting brackets included; aluminum profiles sold separately |
The Rev1 datasheet lists CE, UKCA, Class III (SELV) and RoHS for this dry indoor cabinet lighting product. Confirm the required documentation for your selected configuration when ordering.
LumaLine EvenGlow LS0408F is a recessed cabinet LED strip for narrow furniture details. Use it along wardrobe sides, display niches or shelf edges where a broad visible fitting would interrupt the furniture design.
Application: Dry indoor cabinetry, wardrobes and display cases | Lighting: Soft directional light; specified useful output 200lm/m

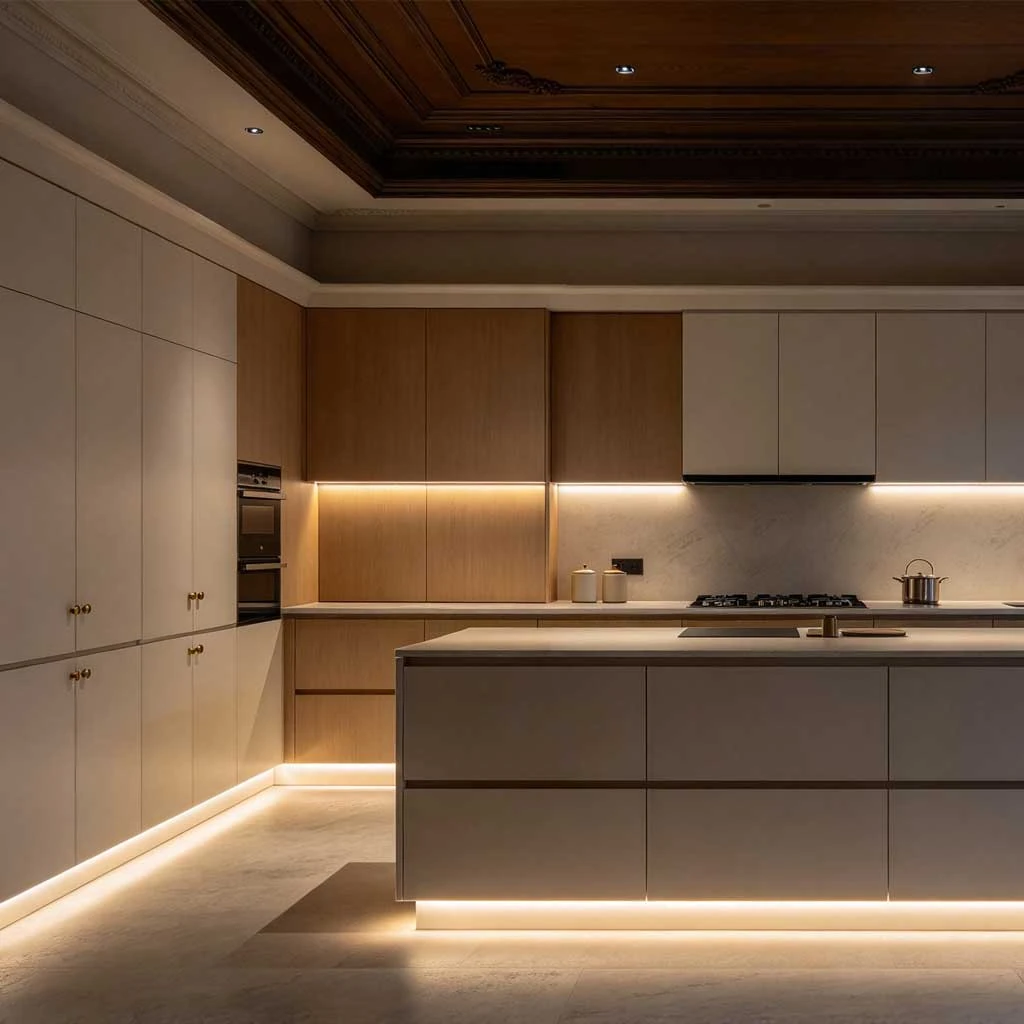

The kitchen scene illustrates a warm linear lighting concept under cabinets and along plinths. It is application inspiration; it does not verify the installed model or promise a measured lighting level. Confirm suitability and protection requirements for the actual location before specifying the product.
For a wardrobe LED strip light, optional IR or PIR sensing supports automatic switching. Choose 3000K or 4000K to suit the interior. This super slim LED strip has a specified CRI above 90, which helps with the appearance of clothing, finishes and displayed objects.
Plan the recess, cable route and bending radius before cabinet manufacture. Aluminum profiles are sold separately. The Rev1 product datasheet gives the dimensions; NewThingLine provides further product information. For general energy-label background, see the European Commission light-source guidance.

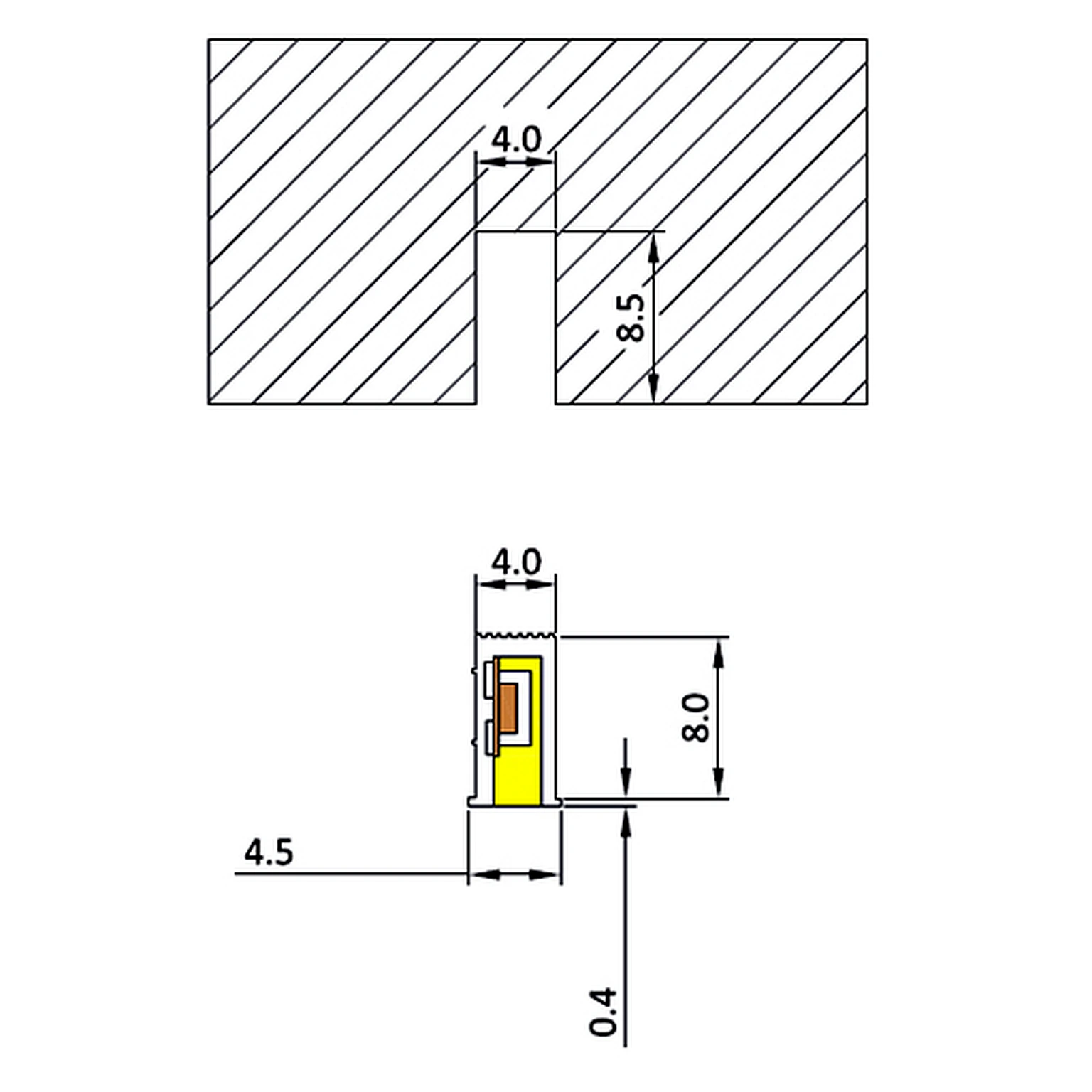

LS0408F has a 4mm body, a 4.5mm flange and an 8mm height. The supplied drawing shows a 4mm-wide recess with an 8.5mm depth. Check the drawing against the panel construction before machining. The specified minimum bending radius is greater than 25mm.
The Rev1 datasheet specifies 24V DC and 7W per meter. A two-meter length therefore has a nominal 14W load. Use a compatible external supply and follow its loading instructions. The older 12V/24V description is not used for this specification. Confirm the power and cable arrangement for the installed length.
This IP20 model is intended for dry indoor furniture lighting. Use it for recessed cabinet details, wardrobes, shelves and display cases. The kitchen photograph is application inspiration, rather than a measured LS0408F installation. Brightness and appearance depend on installed length, placement, finishes and the selected color temperature.
The specification lists ten-meter rolls or customized lengths, 8.33mm cutting intervals and IR or PIR sensor options. LS0408F is the recessed model; request LS0408C for surface mounting. The listed 3000K and 4000K values are options and do not confirm tunable-white control. Include quantities, lengths, connector and sensor requirements in your quotation request.
Warranty terms are not stated in the attached Rev1 specification and should be confirmed in the quotation. The datasheet is available in Downloads below. It lists 30,000 hours lifetime, energy class F, Class III SELV and CE, UKCA and RoHS entries. Ask for the documents and configuration required for your project.
