Lysstang · LED Wardrobe Hanger Profile 567 mm
LED light bar engineered as a wardrobe hanging rod. Because the light source runs edge to edge, garments are lit without dark areas - with a built-in door sensor switch and high light quality (CRI above 90). Clamp mounting under the cupboard (LA1635) or beside it (LA1635CZ).

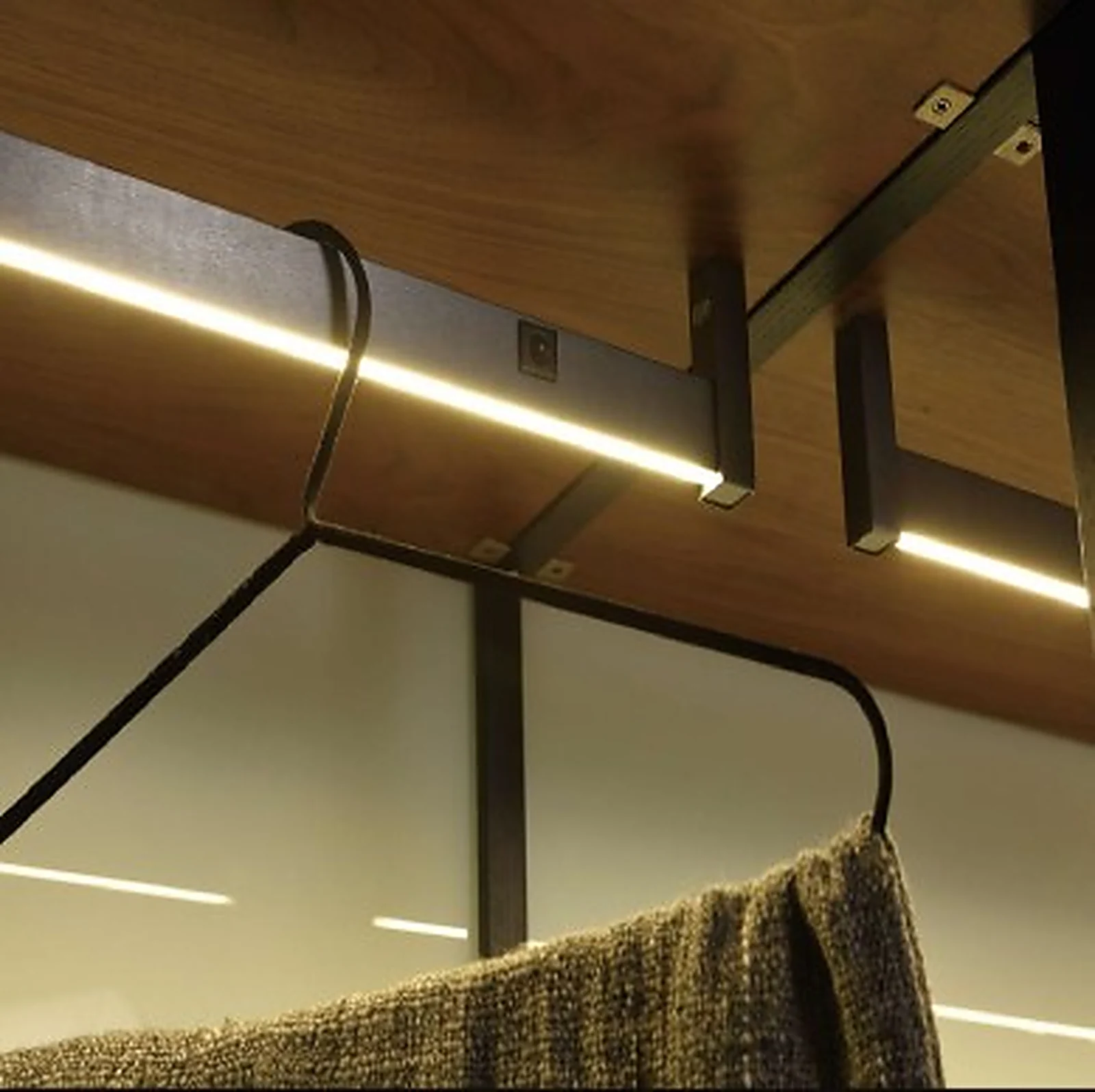

The LED profile doubles as the hanging rod inside wardrobe cabinets.
Clamp mounting under the cupboard (LA1635) or beside it (LA1635CZ) is optional.
The light source runs edge to edge, so the full rail of garments is evenly lit.
A built-in sensor switch controls the light automatically with the door.
CRI above 90 keeps garment and interior colours true.
| SKU | LA1635 | Mounting | Under cupboard mounting (clamp) |
|---|---|---|---|
| Voltage | 12 Vdc | Wattage (total) | 4.1 W |
| CRI | Ra>90 | Lumen (light source) | 454 lm |
| LED Colour Temperature | 3000 K (single white) | IP Rating | IP20 |
| Length | 567 mm standard | Height / Depth | 75 / 19 mm (end brackets) |
| Control | Built-in door sensor switch | Light Distribution | Edge to edge - no dark areas |
| Connection | Connector, 2 m input cable | LED Lifetime | 30,000 hrs |
| Material | Anodised aluminium - Aluminium / Black | Mounting Brackets | Included |
Specifications per LA1635 datasheet (Rev0). Length is 567 mm standard and can be customised; confirm final configuration with our team before specification.
CE and UKCA marked, IP20 rated for indoor wardrobe and cabinet lighting applications. RoHS compliance and certification documentation are confirmed for each product configuration and target market - our team supports documentation alignment per SKU or OEM program.

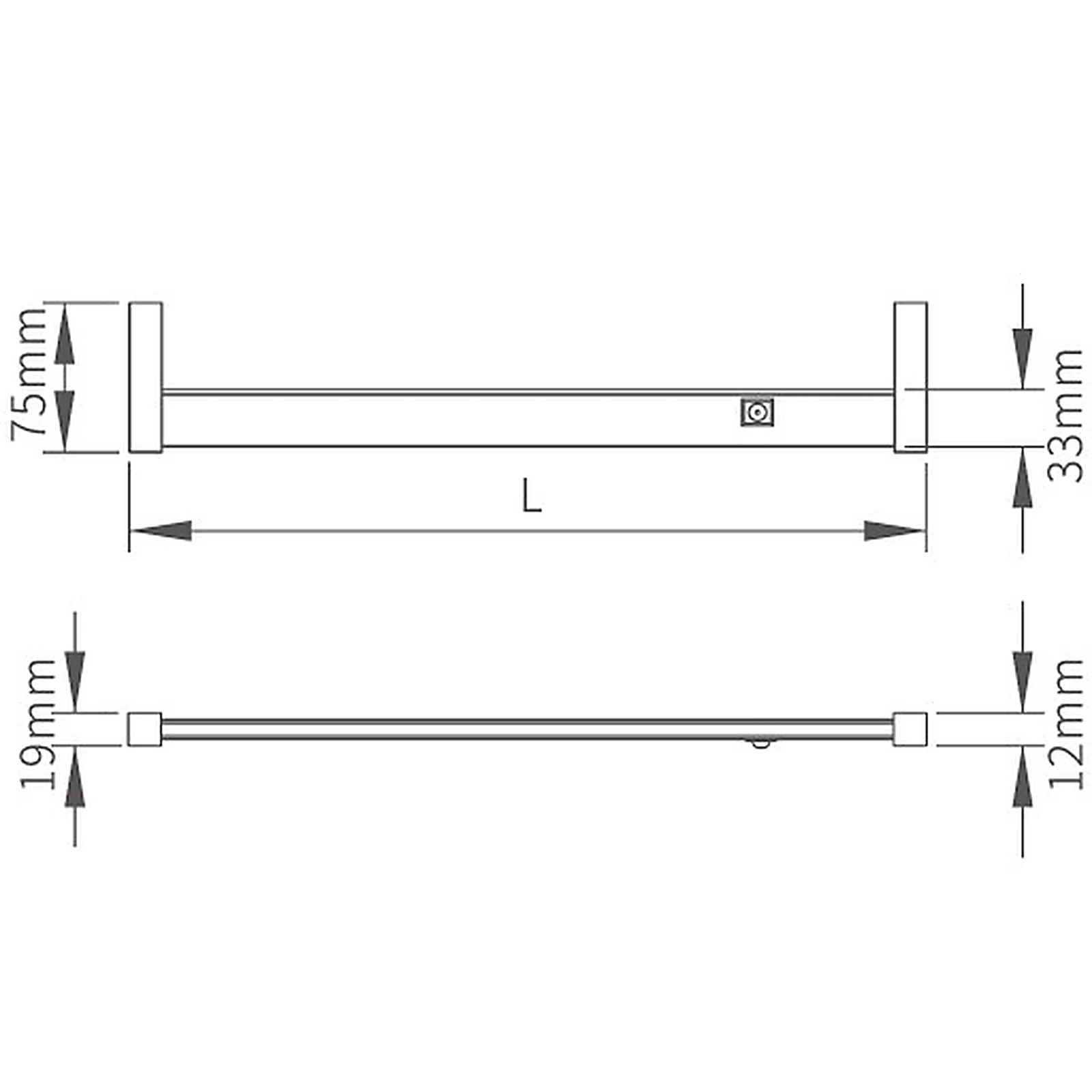

Drawing dimensions: end brackets 75 mm high / 19 mm deep, profile body 33 mm high / 12 mm deep, overall length L - standard 567 mm, customisable per datasheet.

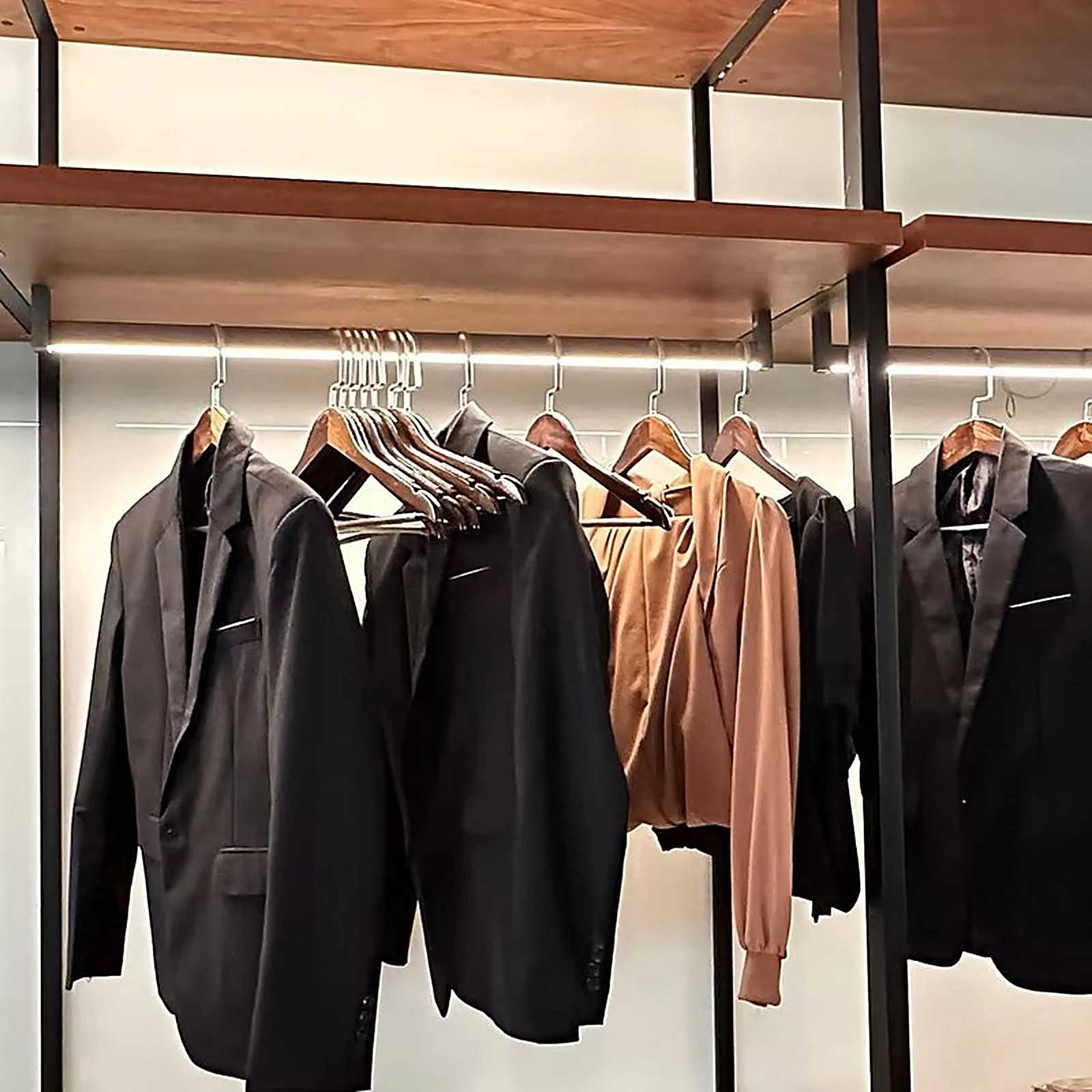

Lysstang Wardrobe Hanger LED Profile is suitable for walk-in closets, wardrobe systems, dressing rooms and cabinet lighting programs where the hanging rail itself should provide the light.
Space: Wardrobe / walk-in closet / dressing room | Lighting: Rail and hanging-area illumination
Because the profile replaces the rod, light starts exactly at the garments - a continuous edge-to-edge line along the 567 mm rail with no dark areas, switched automatically by the built-in door sensor.

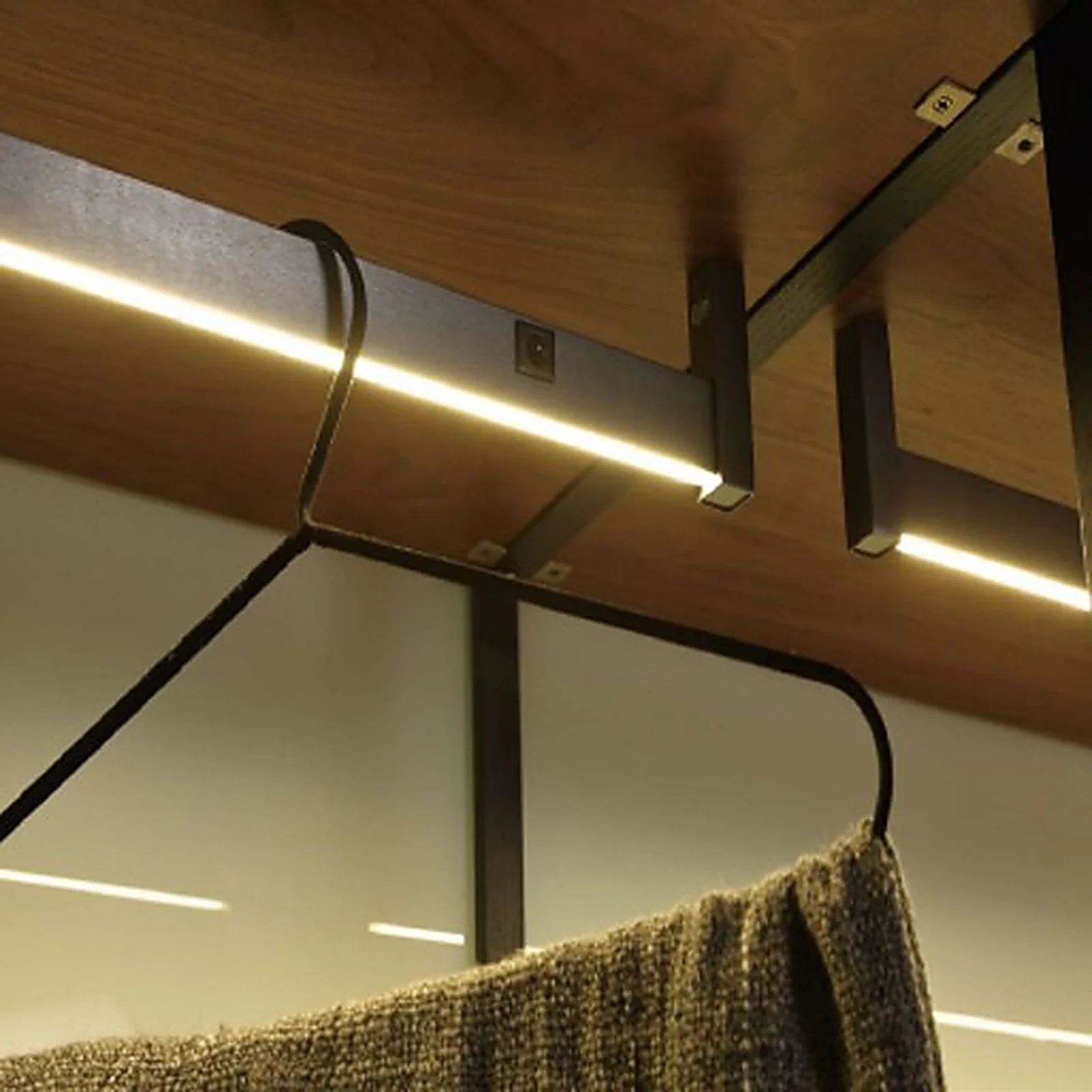

Clamp mounted under the cupboard (LA1635) or beside the cupboard (LA1635CZ).
An anodised aluminium LED profile that doubles as a wardrobe hanging rod. The light source runs edge to edge so the full rail of garments is lit, with a built-in door sensor switch and CRI above 90.

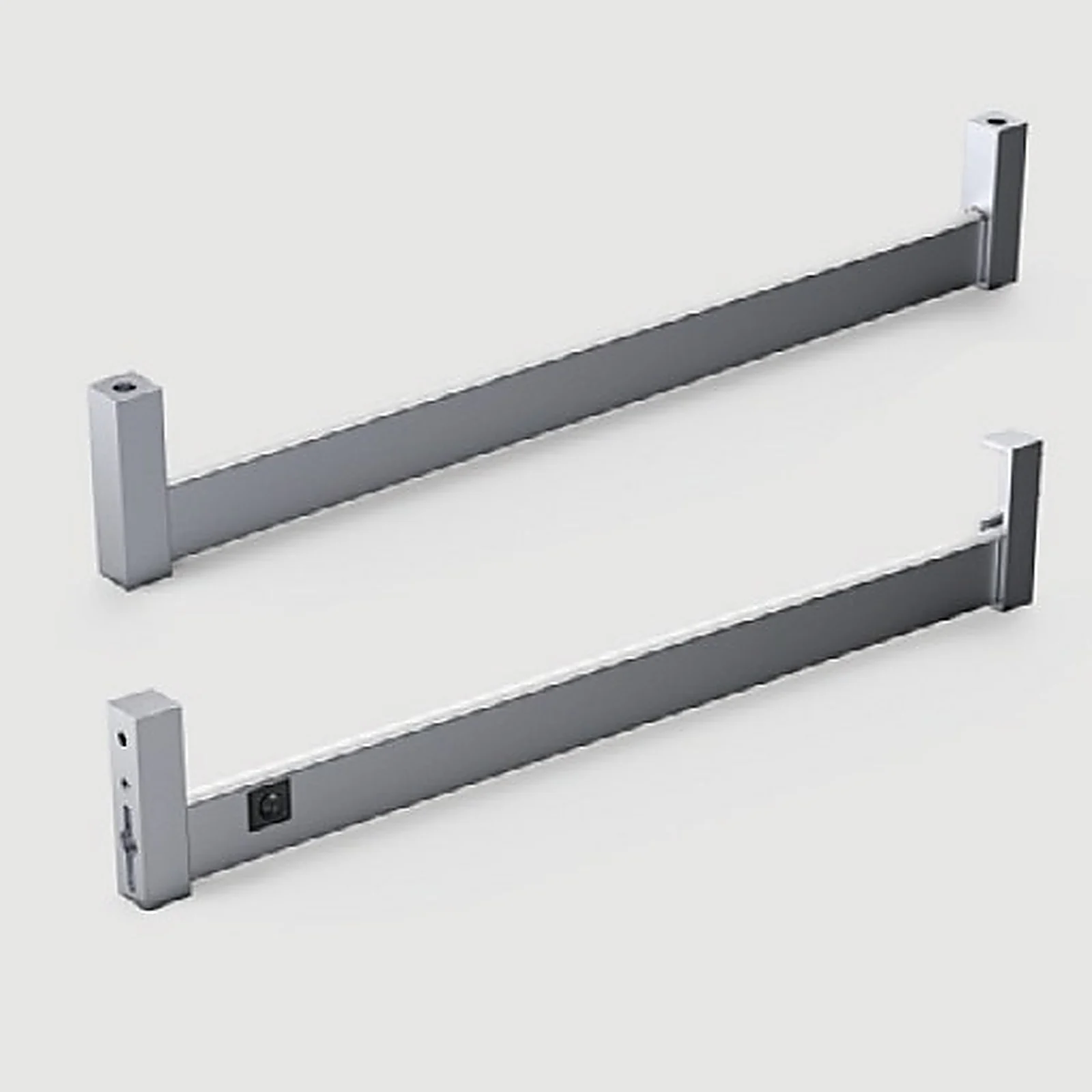

LA1635 for under-cupboard mounting and LA1635CZ for side-cupboard mounting, both with clamp brackets included. Select the mounting version above to update the SKU and quotation request.
Standard length 567 mm (customisable); end brackets 75 mm high x 19 mm deep; profile body 33 mm high x 12 mm deep per the drawing. Confirm the datasheet for your model before specification.
12 Vdc, 4.1 W total, 454 lm light source output, CRI above 90, 3000 K single white, IP20, with a 2 m input cable and connector. LED lifetime 30,000 hrs.
A door sensor switch is built into the profile and controls the light automatically with the cabinet door, keeping operation clean and hands-free.
Yes. Share your cabinet dimensions, target market, quantities and functional requirements - our engineering team will respond with specification guidance and quotation information.
